SC6821 series 2MP Small IR bullet CCTV IP Cameras: 2.0 Megapixel Outdoor Water-proof IR Bullet IP Camera

Description:
2.0 Megapixel outdoor water-proof IR bullet IP camera, it uses Sony Exmor 1/2.8" Progressive Scan CMOS sensor and H.264 compression algorithm, support WDR (wide dynamic range ), 3D Noise Reduction, video rotation and low-light function, it can get perfect image in a variety of lighting conditions. The max resolution is 1920x1280@30fps. It's suitable for outdoor environment where no light at night, like wall, gate, entrance, park, road and etc.

Features Specifications Dimensions

● 1/2.8" 2.1Megapixels Progressive Scan Sony CMOS

● H.264 & MJPEG dual-stream encoding

● Max 25/30fps@1080P (1920x1080)

● WDR, Day/Night (ICR), AWB, AGC, BLC

● Multiple network monitoring: Web viewer, CMS, Smart phone.

● Fixed lens 2.8mm, 3.6mm are optional

● Max. IR LEDs Length 10-15M

● IP66,POE

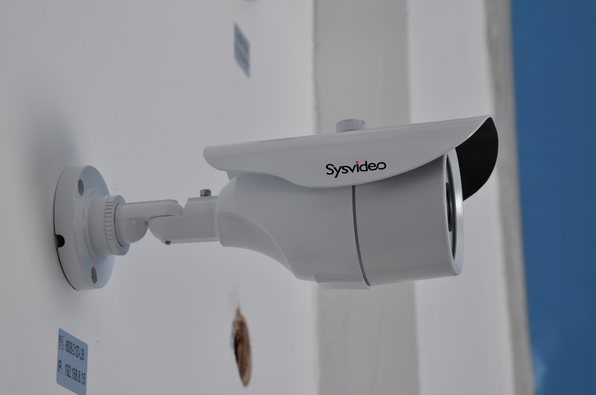

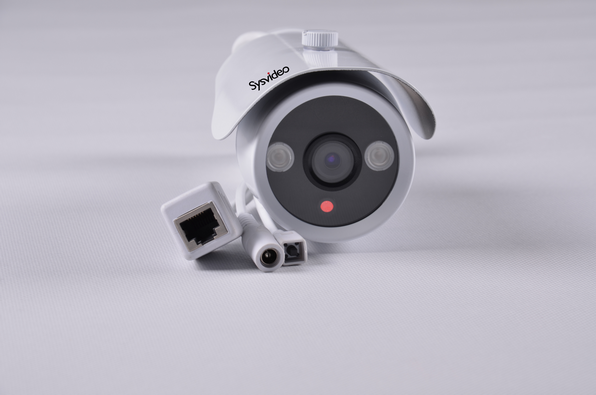

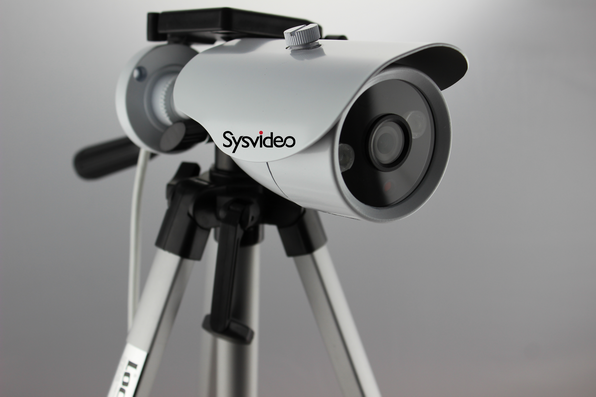

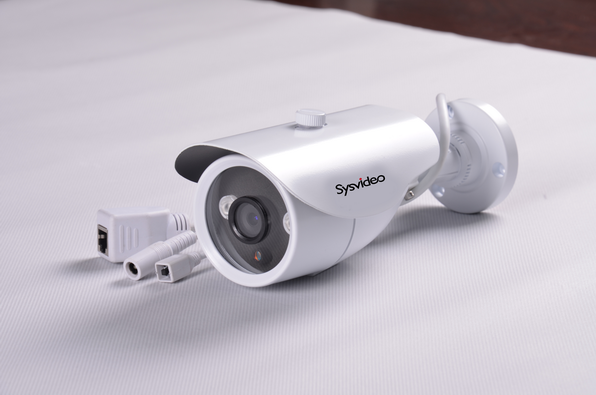

SC68 Series Images

SC6821 Demo Record

(Note: The video has been compressed twice ,so not as good as original demo video.If want to check live demo ,please contact us .)

Camera		SC6821 series
Image Sensor		1/2.8” 2.1megapixels Progressive Scan Sony CMOS
CPU		HI3516C with 500MHZ
Effective Pixels		1920x1080
Scanning System		Progressive
Electronics Shutter Speed		Auto (1/25,1/30 ~ 1/10000s)
Min. Illumination		0.5Lux/F1.2 (Color), 0.05Lux/F1.2(B/W); 0Lux/F1.2 (IR on)
S/N Ratio		>50dB
Camera Features
Max. IR LEDs Length		10-15M
Day/Night		Auto (ICR) / Color / B/W
Backlight Compensation		BLC / HLC / WDR (digital)
White Balance		Auto
Gain Control		Auto
Noise Reduction		3D
Privacy Masking		Up to 4 Areas
Lens
Focal Length		2.8mm, 3.6mm optional
Max Aperture		F1.4
Focus Control		Manual
Angle of View		92°~ 27°
Lens Type		Fixed Iris
Mount Type		Board-in Type
Video
Compression		H.264 / MJPEG
Resolution		1920x1080, 1280x720 ; 640x320, 320x160, 160x112
Frame Rate	Preferred Stream	1920x1080(1~25/30fps), 1280x720 (1~25/30fps)
	Alternate Stream	640x320, 320x160, 160x112 (1~25/30fps)
Bit Rate		32KB ~16Mbps, support VBR, CBR
Network
Ethernet		RJ-45 (10/100Base-T)
Protocol		IPv4/IPv6, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP,
ONVIF		ONVIF Ver. 2.0
Max. User Access		10 users
Smart Phone		iPhone, iPad, Android, Symbian
General
Power Supply		DC12V, POE (802.3af)
Power Consumption		≤5.5W
Working Environment		-20 ℃ ~ 60℃
Ingress Protection		IP66

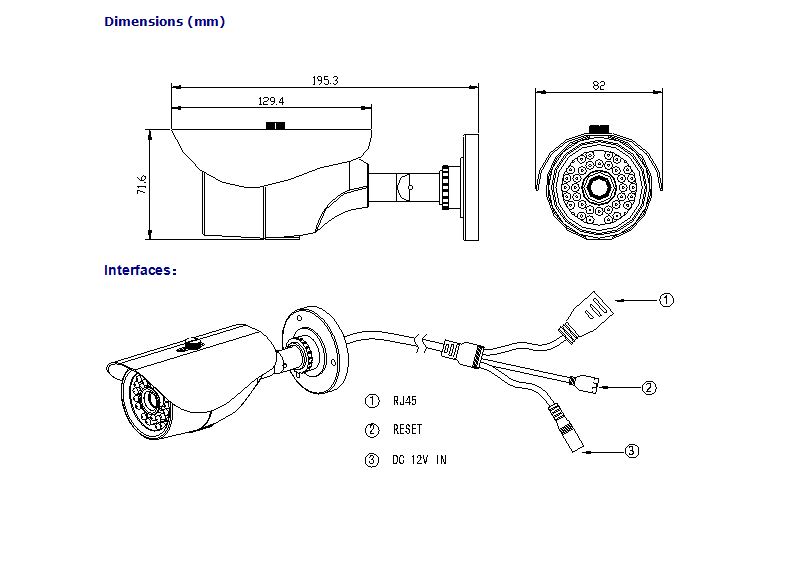

Dimensions		195.3mm ×82mm ×71.6mm
Weight		0.5KG
