You are here:Home > Products > Management Software > IP Camera Web Software
SC6000 Series IP Camera Web Management Software:
Description:
This is SC6000 series (Hisilicon SoC solution) IP camera web management software, user can directly connect IP camera and monitor, control the video from local network or Internet. It support Internet Explorer, Google Chrome and Firefox (need to install a IE tab plugin), it support monitor, record, playback,digital zoom, PTZ, RTSP, FTP,video setting, send email, etc... It only can connect to one camera at same time, if you want to management many cameras, you need to use our camera management software XCenter.

SC6000 IP camera web page UI(user interface): main window

IE main UI.

SC6000 IP camera web page UI(user interface): coding setting

setting

SC6000 IP camera web page UI(user interface):  image parameter config

IE Video config

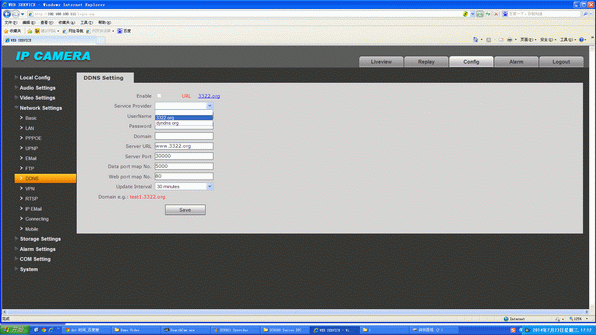

SC6000 IP camera web page UI(user interface):  DDNS setting

SC6000 IPCam DDNS setting

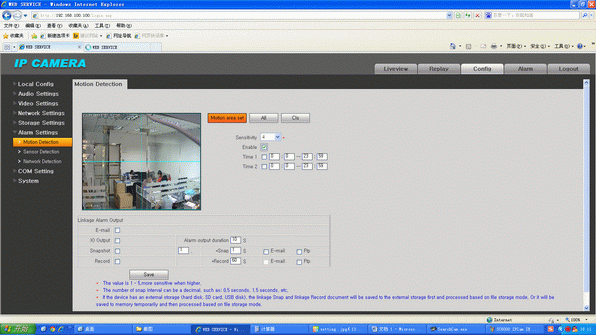

SC6000 IP camera web page UI(user interface):  Alarm setting

SC6000 IPCam IE Alarm setting UI

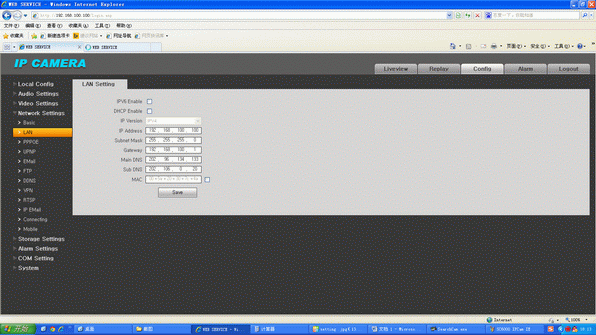

SC6000 IP camera web page UI(user interface):  Lan setting

 SC6000 IPCam IE Lan setting UI.

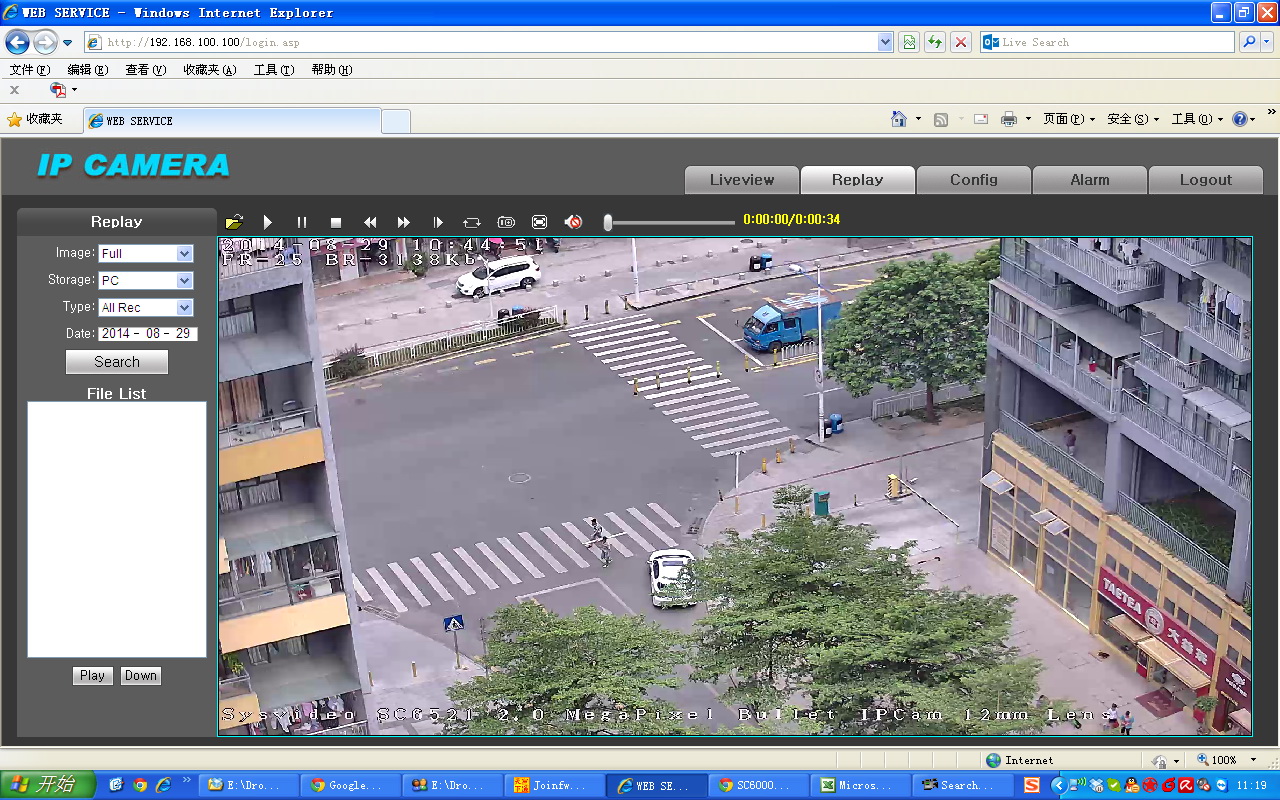

SC6000 IP camera web page UI(user interface):  remote / local playback UI

SC6000 IPCam IE Playback UI

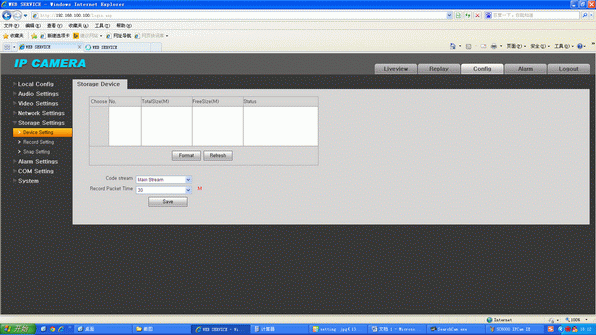

SC6000 IP camera web page UI(user interface):  SD card / local PC storage setting

SC6000 IPCam IE storage UI

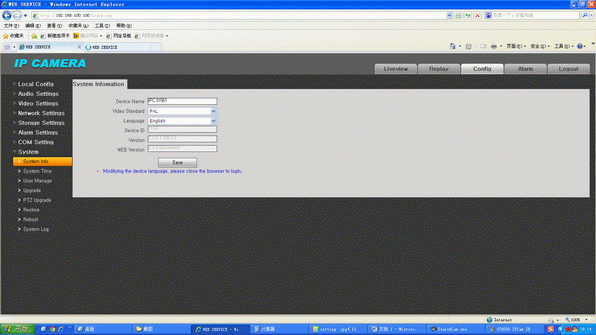

SC6000 IP camera web page UI(user interface):  System setting

SC6000 IPCam IE System setting UI

Main Function
Browser
Internet Explorer, Google Chrome, Firefox (Need to install IE tab)
Zoom
Digital Zoom
Real-time Monitoring
Support CIF/2CIF//D1/Megapixel format
Support snapshot
Stream
Main stream, sub stream is optional
Video Recording
Manual Recording
Video Playback
Manual playback
Alarm
Pop alarm alert
PTZ
Remote control PTZ, focus, iris, preset position
Audio
Listen
Audio volume manual-adjust
Talk-back
Two way Talk-back
Setting
System Setting
Coding format, video quality, language, system update
Network Setting
IP address,DDNS, VPN, RTSP, PPPoE,FTP, Email
Video Setting
Coding parameters,OSD, image setting: WDR, AWB, etc
Motion Detect
motion detection time& area & sensitivity
Alarm Setting
alarm detection time,alarm output switch
COM Setting
baud rate setting,embedded PTZ protocol
Record Setting
record disk&snapshot path setting
