XCenter:  Free Video Management Software for SC6000 Series IP Camera
Description:
XCenter is special designed for small and medium-sized IP network video surveillance system, it can manage max 1728 pieces Sysvideo SC6000 IP cameras simultaneously, and can set & control every IP camera separately, support video recording, playback, seaching, data transmission, FTP, PTZ control, video group, electric map.

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Main Window 36ch
Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Main Window



Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Main Window 25ch

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Main Window 25ch

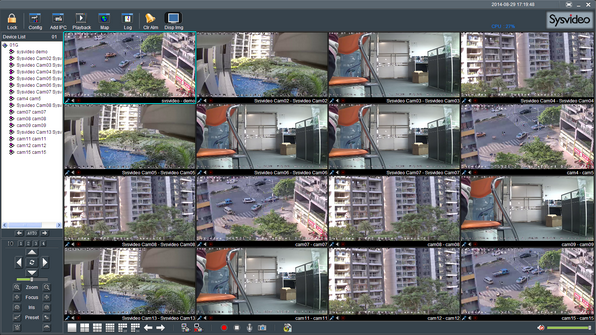

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Main Window 16ch

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Main Window 16ch



Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Main Window 9ch

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Main Window 9ch

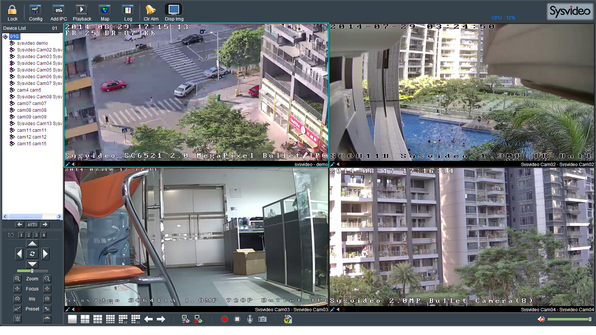

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Main Window 4ch

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Main Window 4ch

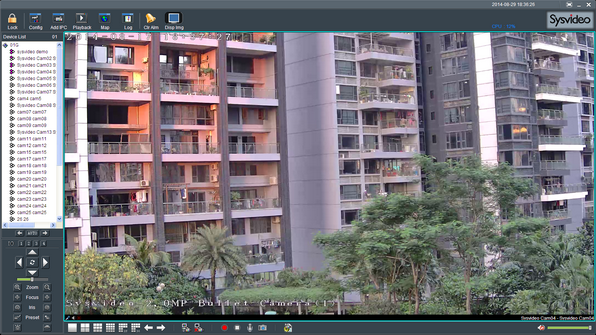

 Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Main Window 1ch

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Main Window 1ch



Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Full Screen

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Full Screen

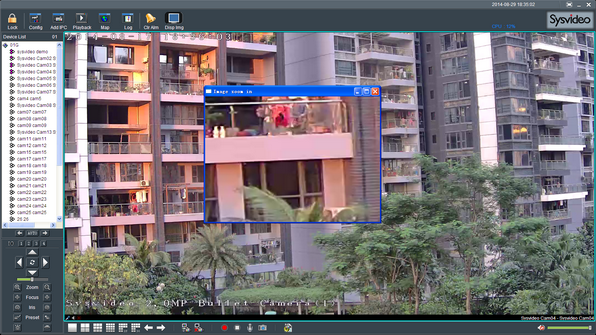

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Digital Zoom

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Digital Zoom



 Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Main Button

XCenter main button



 Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Camera List

Xcenter Camera List



Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Camera IO & PTZ Control

XCenter IO & PTZ Control

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Main Function Button

XCenter function button

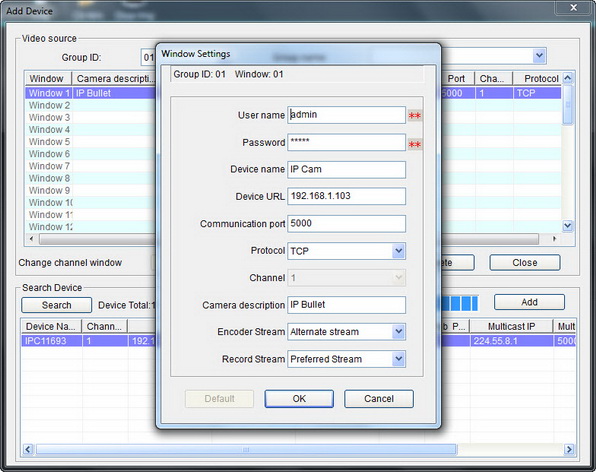

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Lan Auto Search & Add Camera

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: search and add camera

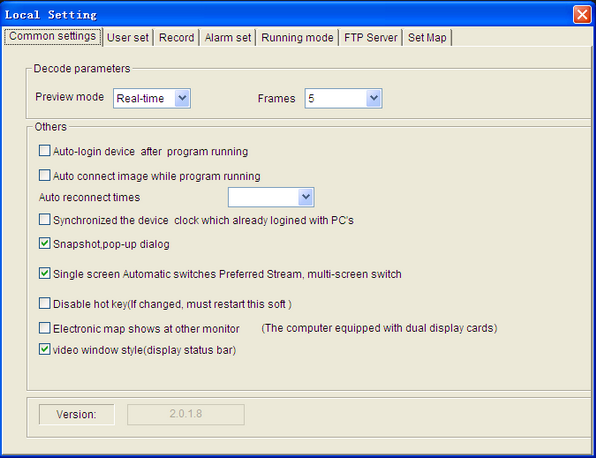

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Local Setting

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: local setting

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Local Setting

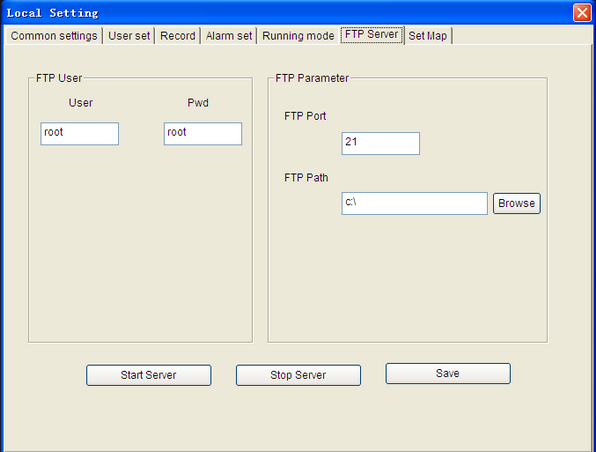

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: FTP Server Setting

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: FTP Server Setting



Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Playback

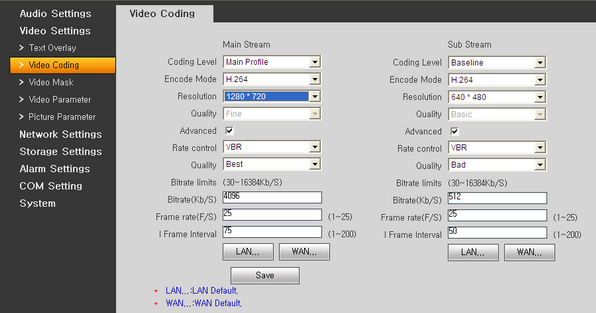

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Camera Video Coding Setting

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Camera Video Coding Setting

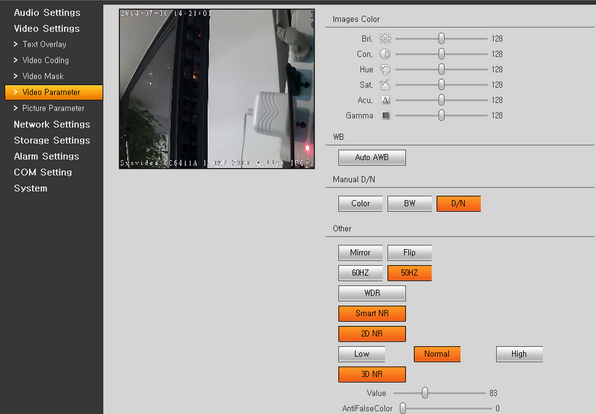

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Camera Video Parameter Setting

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Camera Video Parameter Setting

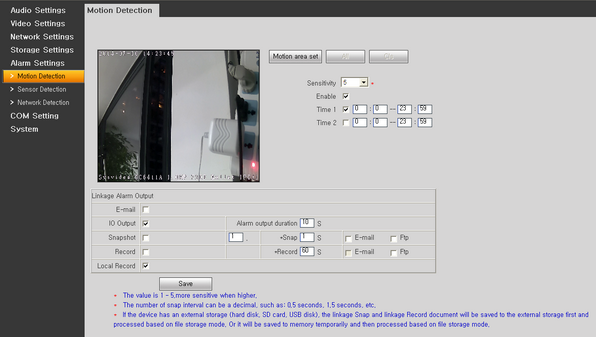

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Camera Motion Detection Setting

Sysvideo SC6000 Series IP Camera Management Software XCenter UI: Camera Motion Detection Setting

Video
Real-time Monitoring Support CIF/2CIF/D1/Megapixel format
Support snapshot
Screen split:1/4/9/16/25/36
Support fullscreen mode
Video Recording Manual,schedule,alarm-triggered
Video Playback Video seaching by camera ID or date, time
Forward / Backward / Frame Play / Snapshot, video cutting,
Support fullscreen mode
PTZ Remote control PTZ&Preset, preset tracking recall, adjustable rotating rate
Audio
Listen Audio volume manual-adjust
Talk-back Two way Talk-back
Alarm
Event Source Video lost/motion,I/O device
Triggered Action Video display, relay, record
Map
Display Map display map status
Map Setting set alarm-delay,sensor display
Setting
Auto Searching Auto seaching all IP camera in local network
IP Camera Setting IP camera’s all parameter, such as IP address, name, video quality
Local Setting record, alarm, running mode,DDNS, data transmission,PTZ protocol
Windows Setting assign display group & window
Map
Display Map display map status
Map Setting set alarm-delay,sensor display
