You are here:Home > Products > Network Video Recorder > Desktop NVR
SN7208-4POE 8 Channel POE NVR HD 2Bay HDD:  8ch 720P/1080P 2Bay Hard Disk Drive HD NVR with 4 Ports PoE
Description:
SN7208-4POE is a standalone high definition network surveillance video recorder. It uses embedded Linux system which keep device away from the computer viruses. It can support 8 channels 1080P 2.0 megapixels (or 8 channels 720P 1.0 megapixels) network cameras at same time. You can watch every detail through HDMI output to high definition monitor. It built-in 2 bay hard disk drive, that can save the video for up to two months. It's special suitable to use for small business and enterprise security system, like supermarket, building, bank.
Features
● Support 1080P HD Preview
● Supports up to 2 megapixels network camera
● ONVIF protocol support, support for the latest ONVIF 2.3 specification, backward compatible
● Support TV, VGA, HDMI sync output; HDMI and VGA video output resolution up to 1920 × 1080
● The mouse can realize three-dimensional intelligent positioning function
● Up to 8 channels D1-channel or 8 channel 720P or 8 channel 1080P
● Support up to 8 channels of simultaneous playback
● Support 2 SATA interfaces
● Support 4 POE power supply
● Support NTP (network time), SADP (IP automatic search), Email (mail service), UPNP (Universal Plug and Play)

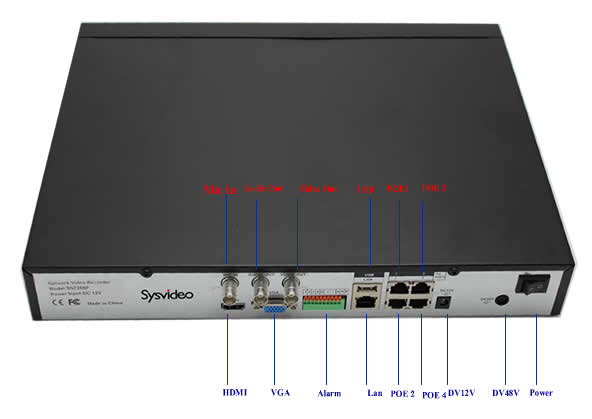

Back Interface:

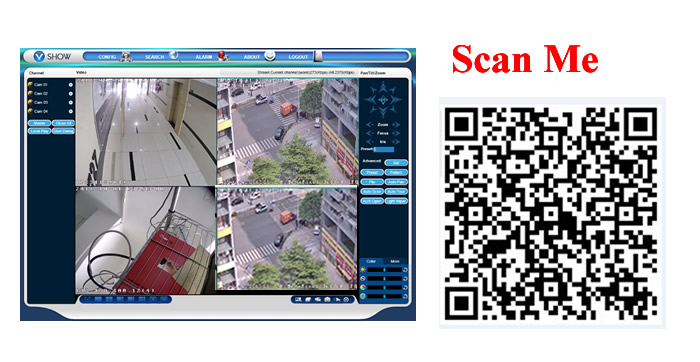

NVR Live Demo (App:vss mobile ) QR Scan :



Model

SN7208-4POE

System

Chips

Hi3520A

Operation System

Embedded LINUX

Pentaplex function

 Live monitoring, recording, playback, backup & remote access

Control Mode

Front panel, USB mouse, IR remote control, Network

Video

IP Camera Input

8ch.D1@30fps
8ch.720P@30fps
8ch.1080P@30fps

Support Protocol

ONVIF

Standard

PAL  (625line, 50f/s)     NTSC  (525line, 60f/s)

Output

1 CVBS, BNC (1.0Vp-p,75 ohms)

1 HDMI,  1.3a,support 1920×1080 Resolution

1 VGA,1920×1080,1440×900,1280×1024,1024×768,800×600  Resolution

Audio

Input

1 ch. BNC

Output

1  BNC (3.3Vp-p,4.7k ohms)

Bidirectional Talk

1ch. Standalone

Display

Resolution

1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Frame

1~30fps

Tour Display

Support

Privacy Masking

Four zones for privacy masking for each channel

Recording

Video Compression

H.264/MPEG 4 AVC,up to Main Profile 5.0

Audio Compression

G.711A

Image Encoding

Adjustable encoding quality, variable code stream/fixed code stream

Dual Stream

Support

Recording Mode

Manual, auto, motion detection, stop

Time bar

Support

Video Detection&Alarm

Trigger Events

Recording, PTZ, Tour,Email

Motion Detection

396 (22×18) detection zone, variable sensitivity levels

Capture

JPEG capture

Alarm Input

4ch.

Alarm Output

1ch.NO,NC

Playback&Backup

Max Playback

1/2/4 ch.

Backup Mode

USB,HDD,Network Backup

Network

Ethernet

1 RJ-45 port (10M/100M)

Network protocol

TCP/IP, UDP, HTTP, RTP/RTSP

Network Functions

 DHCP, PPPOE, DDNS,SMTP,SNTP,FTP,UPnP

Remote Operation

Monitoring,PTZ control,playback,system setting,file download,log information

Smart Phone

iPhone,iPad,Android,Blackberry,Windows Mobile

Hard Disk

Hard Disk

2 SATA ports

HDD Management

Hard disk hibernation technology, HDD faulty alarm&raid

Auxiliary Interface

USB Interface

2 USB 2.0 ports

RS485

Standard 485, half duplex,PTZ control

POE Function

POE function

4 ch.

IEEE 802.3af

RJ45 10M/100M

Environment

Power Supply

DC12V/4A

DC48V/1A(POE)

Power Consumption

10W (without HDD)

Working Environment

-10℃~+55℃  /  10%-90%RH

Dimension(W*D*H)

1U, 360x250x48 (mm)

Weight

2Kg (without HDD)

Installation

Desk type

SN7200 dimension
