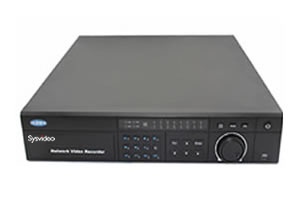

Model
|
SN7832
|
|
System
|
Chips
|
Hi3531
|
|
Operation System
|
Embedded LINUX
|
|
Pentaplex function
|
Live monitoring, recording, playback, backup & remote access
|
|
Control Mode
|
Front panel, USB mouse, IR remote control, Network
|
|
Video
|
IP Camera Input
|
32ch.D1@30fps（2Mbps）
/22ch.720P@30fps(4Mbps)
/32ch.720P@15fps(2Mbps)
/16ch.1080P@30fps(8Mbps)
/22ch.1080P@15fps(4Mbps)
|
|
Support Protocol
|
ONVIF Core Spec 2.2
|
|
Standard
|
PAL (625line, 50f/s) NTSC (525line, 60f/s)
|
|
Output
|
1 CVBS, BNC (1.0Vp-p,75 ohms)
|
|
1 SPOT,BNC (1.0Vp-p,75ohms)
|
|
1 HDMI, 1.3a,support 1920×1080 Resolution
|
|
Audio
|
|
1 VGA,1920×1080,1440×900,1280×1024,1024×768,800×600 Resolution
|
|
Input
|
1 ch. BNC
|
|
Output
|
1 BNC (3.3Vp-p,4.7k ohms)
|
|
Display
|
Bidirectional Talk
|
1ch. Standalone
|
|
Resolution
|
5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
|
|
Frame
|
1~30fps
|
|
Tour Display
|
Support
|
|
Working Status Display
|
LCD,blue backlight(working temperature,recording status,error code etc.)
|
|
Recording
|
Privacy Masking
|
Four zones for privacy masking for each channel
|
|
Video Compression
|
H.264/MPEG 4 AVC,up to Main Profile 5.0
|
|
Audio Compression
|
G.711A
|
|
Image Encoding
|
Adjustable encoding quality, variable code stream/fixed code stream
|
|
Dual Stream
|
Support
|
|
Resolution(NVR)
|
D1,720P,1080P realtime
|
|
Video Detection
&Alarm
|
Recording Mode
|
Manual, auto, motion detection, stop
|
|
Time bar
|
Support
|
|
Trigger Events
|
Recording, PTZ, Tour,Email
|
|
Motion Detection
|
396 (22×18) detection zone, variable sensitivity levels
|
|
Capture
|
JPEG capture
|
| |
Alarm Input
|
16ch.
|
|
Alarm Output
|
4ch.NO,NC
|
|
Playback
&Backup
Network
|
Max Playback
|
1/2/4/9/16/32 ch.
|
|
Backup Mode
|
USB,HDD,Network Backup
|
|
Ethernet
|
1 RJ-45 port (10M/100/1000M)
|
|
Network protocol
|
TCP/IP, UDP, HTTP, RTP/RTSP
|
|
Network Functions
|
DHCP, PPPOE, DDNS,SMTP,SNTP,FTP,UPnP
|
| |

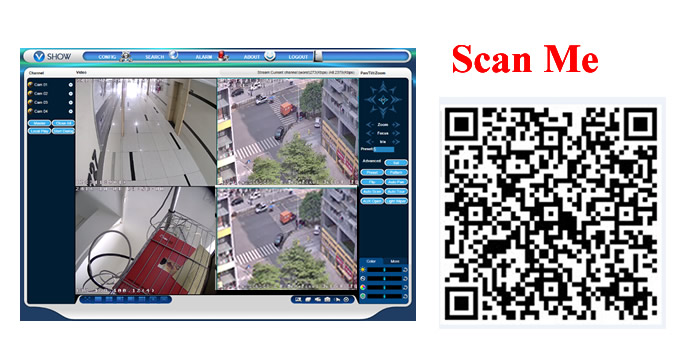

Remote Operation
|
Monitoring,PTZ control,playback,system setting,file download,log information
|
|
Smart Phone
|
iPhone,iPad,Android,Symbian,Blackberry,Windows Mobile
|
|
Hard Disk
|
Hard Disk
|
8 SATA,1 ESATA ports
|
|
HDD Management
|
Hard disk hibernation technology, HDD faulty alarm&raid
|
|

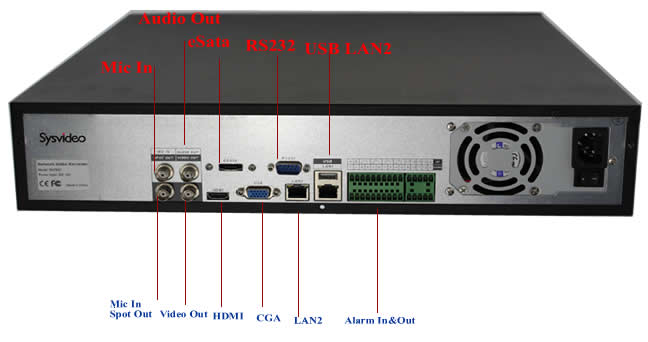

Auxiliary Interface
|
USB Interface
RS232
RS485
|
2 USB 2.0 ports
|
|
Support
|
|
Standard 485, half duplex,PTZ control
|
|
Environment
|
Power Supply
Power Consumption
|
220±10% 47-63Hz
|
|
10W (without HDD)
|
|
Working Environment
|
-10℃~＋55℃ / 10%－90%RH
|
|
Dimension(W*D*H)
|
2U, 445x440x89 (mm)
|
|
Weight
|
7.5Kg (without HDD)
|
|
Installation
|
Shelf/Desk type
|
