SN-ISC3500-EL 16ch /8ch Raid5 NVR: 16ch 720P / 8ch 1080P 8 HDDs RAID5 Embedded Linux NVR

Description:
SN-ISC3500-EL is a new-generation network video recorder (NVR) developed by Sysvideo for full digital monitoring. Integrating a range of features such as audio and video code compression, and data transmission and storage, Suitable for education, medical, financial, power and other small and medium-sized campus monitoring project’Built on a compact structure, it operates on an embedded operating system.

Features Specifications Dimensions

• Support 1080P, 720P, D1, CIF IP camera input

• Support JBOD, RAID1, RAID5

• Hard disk Hot Plugging, Hot-Spare;

• Third-party IP cameras supported with ONVIF conformance

• Direct-to-iSCSI data block storage, second-level retrieval, instant playback

• HDMI, VGA output up to 1080p

• 8 SATA HDDs up to 32TB

Software Interface:

CMS EZStation

RAID5 NVR CMS EZStation

RAID5 NVR IE Search IP Camera

RAID5 NVR IE Hard Disk Array Setting

RAID5 NVR IE Video Monitor

RAID5 NVR IE - View

RAID5 NVR IE 4 Channels View

RAID5 NVR IE 10 Channels View

RAID NVR IE 8CH

RAID5 NVR IE 36 Channels View

RAID5 NVR IE 36 channels View

Model		SN-ISC3500-EL
Video
IP Video Input	32ch 720P / 16ch 1080P
CVBS Output	1-ch, BNC (1.0Vp-p, 75Ω)
VGA Output	1-ch,resolution: 19201080@60,1280720@60,12801024@60,1024768@60,1600*1200@60
DVI-D Output	1-ch,resolution: 19201080@60,1280720@60,12801024@60,1024768@60,1600*1200@60
Recording resolution	1080P / 720P / D1 / 2CIF / CIF
Sync Playback	16-ch
Audio
Output	2-ch, BNC
Two-way Talk	2-ch Input, 2-ch Output (Reuse the audio output channel), BNC
Hard Disk Driver
Interface Type	8 SATA interfaces
Capacity	Up to 4TB capacity for each HDD

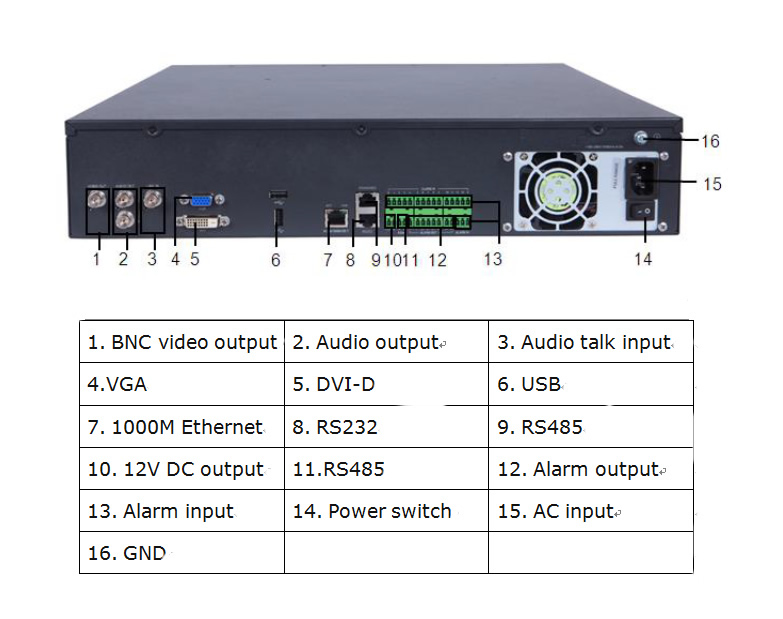

External Interface
Network Interface	1 RJ45 10M/100M/1000M adaptive Ethernet Interface
USB Interface	2 USB2.0 interfaces
Serial Interface	1 RS-232 , 2 RS-485
Alarm Input	16-ch
Alarm Output	4-ch
Power Output	12 VDC, 12 W (MAX)
General
Power Supply	100 ~ 240 VAC
Consumption	≤ 40 W (without HDD) ;140W ( with 8 HDD)
Working Temperature	-10°C ~ + 55°C (14°F ~ 131°F)
Working Humidity	10% ~ 90%
Weight	10.0 kg (without HDD) ; 16 kg (with 8 HDD) ;
Dimensions (W x D x H)	2U Rack: 536.0 × 442.0 × 86.1 mm (21.1” × 17.4” × 3.3”)
