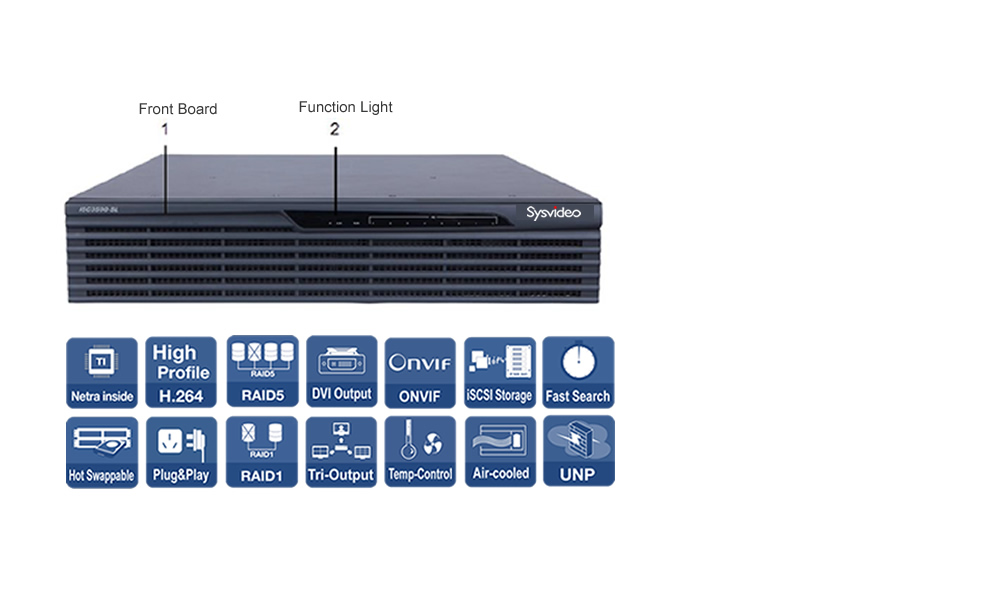

SN-ISC3500-SL 16channel /8channel RAID5 Linux NVR:  16ch 720P / 8ch 1080P 8 HDDs RAID5 Embedded Linux NVR

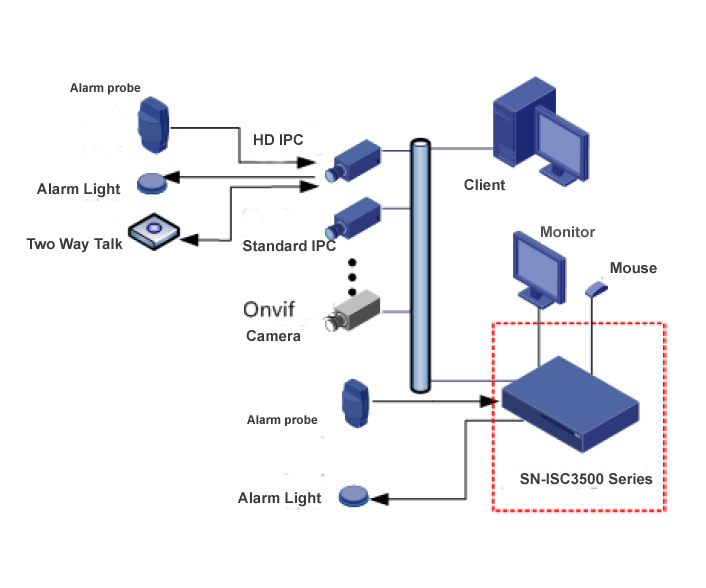

SN-ISC3500-SL is a new-generation network video recorder (NVR) developed by Sysvideo for full digital monitoring. Integrating a range of features such as audio and video code compression, and data transmission and storage, Suitable for education, medical, financial, power and other small and medium-sized campus monitoring project’Built on a compact structure, it operates on an embedded operating system.
 • Support 1080P, 720P, D1, CIF IP camera input

• Support JBOD, RAID1, RAID5

• Hard disk Hot Plugging, Hot-Spare;

• Third-party IP cameras supported with ONVIF conformance

• Direct-to-iSCSI data block storage, second-level retrieval, instant playback

• HDMI, VGA output up to 1080p

• 8 SATA HDDs up to 32TB





IP Video Input

16ch 720P / 8ch 1080P

CVBS Output

1-ch, BNC (1.0Vp-p, 75Ω)

VGA Output

1-ch,resolution: 1920*1080@60,1280*720@60,1280*1024@60,1024*768@60,1600*1200@60

DVI-D Output

1-ch,resolution: 1920*1080@60,1280*720@60,1280*1024@60,1024*768@60,1600*1200@60

Recording resolution

1080P / 720P / D1 / 2CIF / CIF

Sync Playback




2-ch, BNC

Two-way Talk

2-ch Input, 2-ch Output (Reuse the audio output channel), BNC

Hard Disk Driver

Interface Type

8 SATA interfaces


Up to 4TB capacity for each HDD

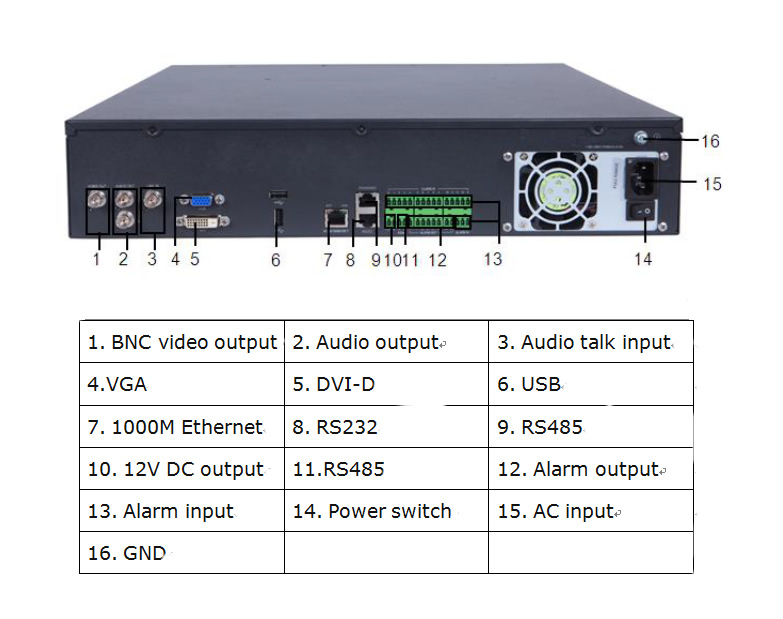

External Interface

Network Interface

1 RJ45 10M/100M/1000M adaptive Ethernet Interface

USB Interface

2 USB2.0 interfaces

Serial Interface

1 RS-232 , 2 RS-485

Alarm Input


Alarm Output


Power Output

12 VDC, 12 W (MAX)


Power Supply

100 ~ 240 VAC


≤ 40 W (without HDD) ;140W ( with 8 HDD)

Working Temperature

-10°C ~ + 55°C (14°F ~ 131°F)

Working Humidity

10% ~ 90%


10.0 kg (without HDD) ; 16 kg (with 8 HDD) ;

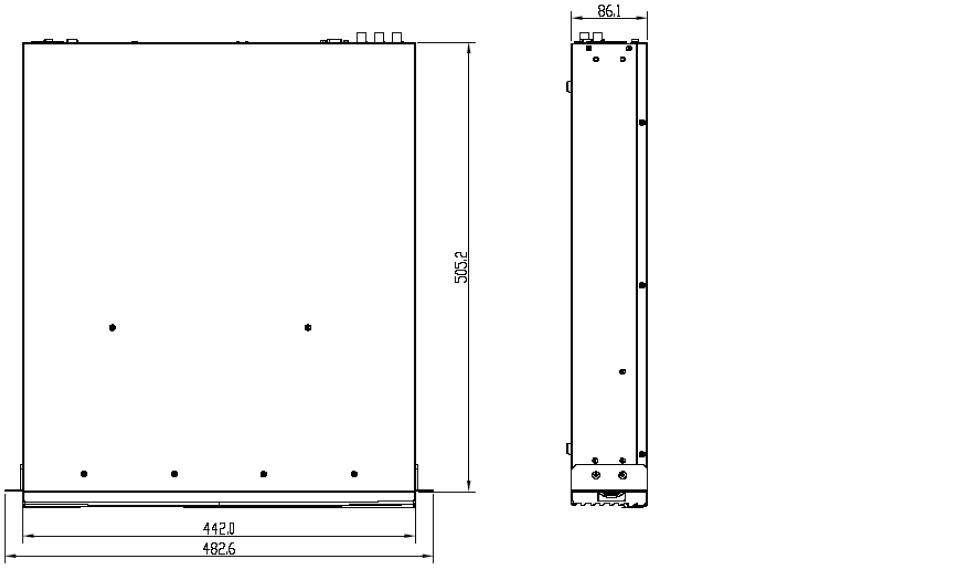

Dimensions (W x D x H)

2U Rack: 536.0 × 442.0 × 86.1 mm (21.1” × 17.4” × 3.3”)
