SC6551 5MP IR Bullet Outdoor CCTV Network Cameras: 5.0 Megapixel 1080P Super HD Outdoor Waterproof POE IR Bullet IP Camera

Description:
SC6551 is a 5.0 megapixel 1080P Super HD outdoor waterproof POE IR bullet IP camera, support IP66, 4 set array LED big light, support 50m IR distance.

Features Specifications Dimensions

● 1/2.5" 5.0 Megapixels Progressive Scan Aptina CMOS.

● H.264 & MJPEG dual-stream encoding

● Max 5.0 megapixel 12fps@2592x1944, and 3.0 megapixel 20fps@2048x1536, 2.0 megapixel 25/30fps@1080P (1920x1080).● WDR, Day/Night (ICR), AWB, AGC, BLC,Waterproof

● Multiple network monitoring: Web viewer, CMS, Smart phone.

● fixed lens 4mm, 6mm, 12mm are optional

● Max. IR LEDs Length 30-50M

● IP66, Built in POE

Options:

● 2.8-12mm Varifocal Lens

● AC/DC Adapter

Demo Picture:

The following pictures have been resized, you can click the link to view the original big pictures (100% size).

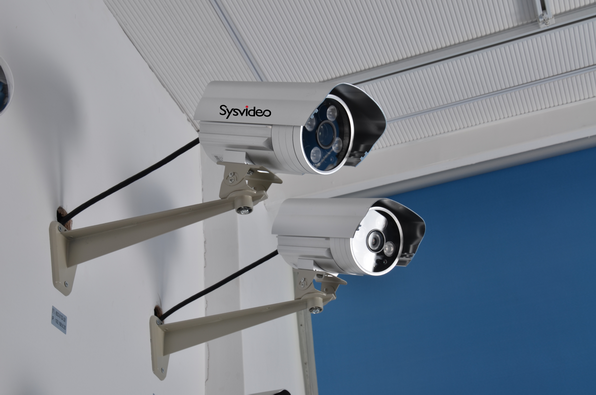

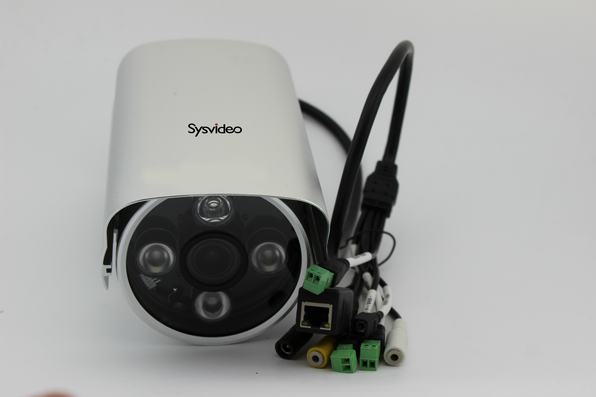

SC65 Series Images

Specification

Model		IR	IP66		POE	LENS (4mm, 6mm,8mm, 12mm and 2.8-12mm)
SC6551		Yes	Yes		Yes	Fixed Lens included, 2.8-12mm optional
Image Sensor				1/2.5” 5.0 megapixels Progressive Scan Sony CMOS
Effective Pixels				2592x1944
Scanning System				Progressive
Electronics Shutter Speed				Auto (1/25,1/30 ~ 1/10000s)
Min. Illumination				0.5Lux/F1.2 (Color), 0.05Lux/F1.2(B/W); 0Lux/F1.2 (IR on)
S/N Ratio				>50dB
Camera Features
Max. IR LEDs Length				30-50M
Day/Night				Auto (ICR) / Color / B/W
Backlight Compensation				BLC / HLC / WDR (digital)
White Balance				Auto
Gain Control				Auto
Noise Reduction				3D
Privacy Masking				Up to 4 Areas
Lens
Focal Length				4mm, 6mm,8mm, 12mm or 2.8-12mm optional
Max Aperture				F1.4
Focus Control				Manual
Angle of View				92°~ 27°
Lens Type				Manual Iris
Mount Type				Board-in Type
Video
Compression				H.264 / MJPEG
Resolution				2592x1944, 2048x1536 ; 1920x1080; 640x352, 320x240
Frame Rate	Preferred Stream			2592x1944 (1~12fps), 2048x1536 (1~20fps), 1920x1080(1~25/30fps),
	Alternate Stream			640x352, 320x240 (1~25/30fps)
Bit Rate				32KB ~16Mbps, support VBR, CBR
Audio (“-AV” only)
Compression				G.711a / G.711U, G.726

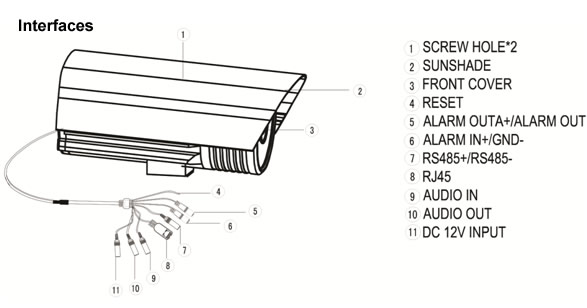

Interface				1 channel Input, 1 channel Output
Network
Ethernet				RJ-45 (10/100Base-T)
Protocol				IPv4/IPv6, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP,
ONVIF				ONVIF Ver. 2.0
Max. User Access				10 users
Smart Phone				iPhone, iPad, Android, Symbian
Auxiliary Interface
Alarm (“-AV” only)				1channel Input, 1 channel Output
General
Power Supply				DC12V, POE (802.3af)
Power Consumption				≤15W
Working Environment				-20 ℃ ~ 60℃
Ingress Protection				IP66,

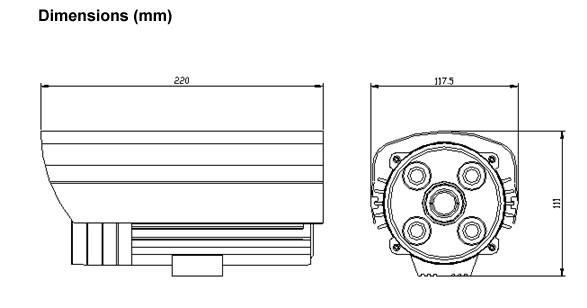

Dimensions				220mm ×117.5mm ×111mm
Weight				2.2KG
