SC6510A 1MP Outdoor IR Bullet IP Camera: 1.0 Megapixel OV Exmor 720P HD Watorproof Bullet IP Camera

Description:
1280*720,1.0 Megapixel outdoor water-proof IR bullet IP camera, it uses OV Exmor 1/4" Progressive Scan OV CMOS sensor and H.264 compression algorithm, support WDR (wide dynamic range ), 3D Noise Reduction, video rotation and low-light function, can get perfect image in a variety of lighting conditions. The max resolution is 1280x1024@30fps. Its water-proof level is IP66. It's suitable for outdoor environment where no light at night, like wall, gate, entrance, park, road and etc.Digital WDR, intelligence 3D noise reduction, 4 IR lights, Max 50m, Micro SD card slot, audio & alarm input/output, RS485. No PoE, 8mm Fixed Lens, No AC/DC adapter.

Features Specifications Dimensions

• OV Exmor 1/4" Progressive Scan CMOS sensor,super low light.

• Resolution: support 1280*720(25/30fps).

• H.264/MJEG is optional, dual streaming, low bandwidth, high quality.

• Super low light sensor,0.01Lux @F1.2, AGC ON

• Support digital WDR.

• Support intelligence 3D denoise,adaption stationary and moving image.

• Support AE,AWB,AGC,DC auto irse lens.

• Support defogging,digital image stabilizer,lens distortion correction.

• Support rotation by 90° or 270°,suit for long passage scene.

• Support analog Video surveillance output,Built-in 2 pins connector.

• Support protocals: ONVIF,RTSP,RTP,HTTP,TCP/IP,UDP,SMTP,PPPoE,DDNS,DNS,SNTP,DHCP,FTP.

• Support pravicy zone mask (max 4 individal mask zone).

• Alarm recording: video lost, motion detection and sensor alarm.

• Built-in Web server enables the use of a standard Web browser for viewing and management.

SC6510 Series Ordering Information:

1. SC6510-L04 lens 4mm

2. SC6510-L06 lens 6mm

3. SC6510-L08 lens 8mm

4. SC6510-L12 lens 12mm

5. SC6510-L16 lens 16mm

6. SC6510-T12 lens 2.8--12mm

7. SC6511-L04 POE,lens 4mm

8. SC6511-L06 POE,lens 6mm

9. SC6511-L08 POE,lens 8mm

10. SC6511-L12 POE,lens 12mm

11. SC6511-L16 POE,lens16mm

12. SC6511-T12 POE,lens 2.8--12mm

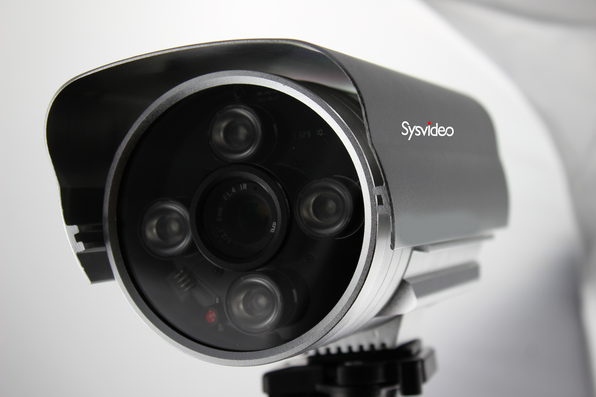

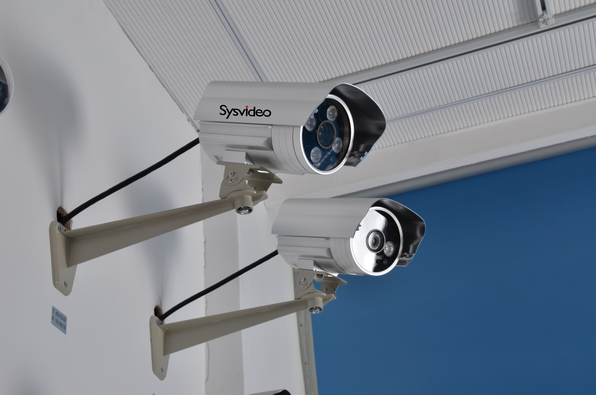

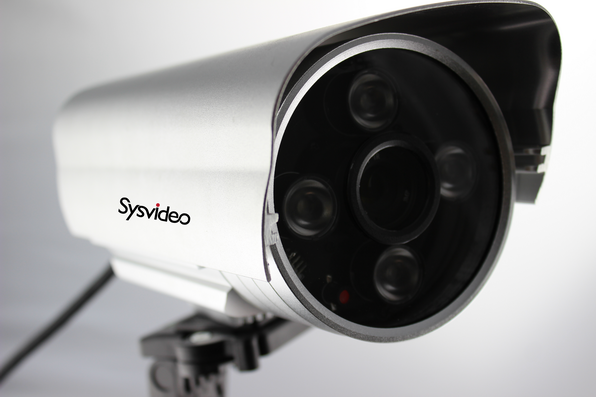

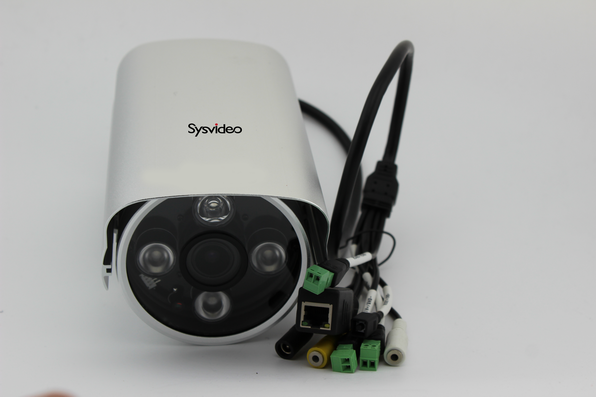

SC65 Series Images

Model		SC6510A
Type		1.0 Megapixel 0V Exmor HD IP Watorproof Bullet Camera
CPU		ARM9
SoC Chip		HISILICON Hi3518A
Sensor		SONY Exmor 1/3" Progressive Scan CMOS sensor,super low light
Effective Pixels		1280(H)×720(V) , 1.0 mega pixel
Min.Illumination		Color Mode: 0Lux IR on
IR led light		4 IR LED lights, IR working distance: 40m
Dynamic Range		100dB,digital WDR ON
S/N		≥50db(AGC OFF)
Auto Electronic Shutter		1/25(1/30)—1/10000sec
Network Interface		LAN 10/100M BASE-TX, , RJ-45 connector
Audio Talkback		1 channel MIC input，External access
Audio Output		1 channel linear output
I/O Interface		1-channel input, Normally Open/Normally Close modes adjustable; 1-channel output, 120VAC 1A/24VDC 1A,1 RS485 interface
Video Compression		H.264 Main Profile Level 4, MJPEG/JPEG Baseline
Resolution	Master Streaming	12801024,1-30 fps/sec;1280720,1-30 fps/sec;
	Second Streaming	720576,1-30 fps/sec; 640320,1-30 fps/sec; 320*160,1-30 fps/sec;
Video Bitrate		32Kbps～16Mbps,Supports CBR/VBR
Title OSD		Supports channel name, date, and video stream information overlay;OSD location is adjustable
Data storage		video audio and picture
Recording		Recording set up to record by motion trigger,alarm trigger, manual, or schedule
Alarm Output		E-mail, Explorer, Software
Network protocol		ONVIF、TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP
Remote View	Computer	IE 6.0 or up, max 5 user
	Mobile Phone	Windows Mobile、Symbian、iPhone
Operating Temperature		-10℃ - +55℃
Operating Humidity		0% - 90%
Proof		IP66
Power		DC12V
Power Consumption		DC12V/POE(IEEE 802.3af)(Optional)
Dimension		220(L) 117(W)111(H)mm
Weight		0.6KG
