SC6951 5MP and 3MP IR Dome Indoor :  5.0 Megapixels (3.0 Megapixel) Indoor Fixed Dome PoE IR IP Camera
Description:
SC6951 is a super high definition 5 megapixel IP camera, it can up to 5 megapixel 12fps, 3 megapixel 20fps, 2 megapixel 25/30fps. It support PoE, IR, fixed lens, waterproof, the flat window can provide better IR night vision image. It is suitable for door, entrance, etc..

● 1/2.5" 5.0 Megapixels Progressive Scan Aptina CMOS.
● H.264 High Profile & MJPEG dual-stream encoding.
● Max 5.0 megapixel 12fps@2592x1944, and 3.0 megapixel 20fps@2048x1536, 2.0 megapixel 25/30fps@1080P (1920x1080).
● Digital WDR (>100db), 2D, 3D noise reduction, AWB, AGC, BLC.
● Multiple network monitoring: Web viewer, CMS, Smart phone.
● To switch Day/Night by video detection, IR detection and time.
● Max. IR LEDs Length 10-15m
● POE optional
● Micro SD Card Slot (max 64GB),
● Fixed lens 3.6mm, 6mm are optional.
● Support ONVIF2.3 above.



SC69 Series Images



Ordering Model:
IR
POE
Audio
IP66
LENS (3.6mm, 6mm)
SC6951
Yes
Yes
No
Yes
Fixed Lens included,
SC6952
Yes
Yes
Yes
Yes
Fixed Lens included,
Camera
Image Sensor
1/2.5” 5.0 Mega pixels Progressive Scan Sony CMOS
CPU
Hi3516
Effective Pixels
2592x1944
Scanning System
Progressive
Electronics Shutter Speed
Auto (1/25,1/30 ~ 1/10000s)
Min. Illumination
1Lux/F1.2 (Color), 0.1Lux/F1.2(B/W); 0Lux/F1.2 (IR on)
S/N Ratio
>50dB
Camera Features
Max. IR LEDs Length
5-10m
Day/Night Switch
Auto Color to B/W
Backlight Compensation
BLC / HLC / WDR (digital)
White Balance
Auto
Gain Control
Auto
Noise Reduction
2D, 3D
Privacy Masking
Up to 4 Areas
Lens
Focal Length
3.6mm, 6mm optional
Max Aperture
F1.4
Focus Control
Manual
Angle of View
97°~ 36°
Lens Type
Fixed Iris (fixed lens)
Mount Type
Board-in Type
Video
Compression
H.264 High Profile, Main Profile, Baseline / MJPEG
Resolution
2592x1944, 2048x1536 ; 1920x1080; 640x352, 320x240
Frame Rate
Preferred Stream
2592x1944 (1~12fps),
2048x1536 (1~20fps),
1920x1080(1~25/30fps),
Alternate Stream
640x352, 320x240 (1~25/30fps)
Bit Rate
32KB ~16Mbps, support VBR, CBR
Audio (Optional)
Compression
G.711a / G.711U, G.726
Interface
1 channel Input, 1 channel Output
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4/IPv6, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP,
ONVIF
ONVIF Ver. 2.3
Max. User Access
10 users
Smart Phone
iPhone, iPad, Android
Auxiliary Interface
Memory Slot
Micro SD, Max 64GB
General
Power Supply
DC12V, POE (802.3af)
Power Consumption
≤5W
Working Environment
-20 ℃ ~ 60
Dimensions
Φ147.7mm ×99mm
Weight
0.5KG

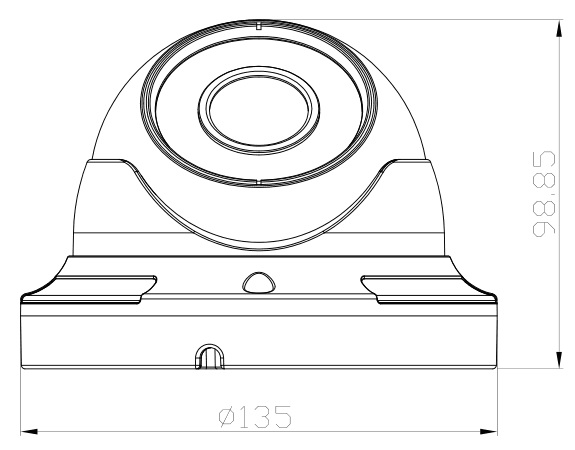

SC69 series IP Dome Camera Dimension:

SC69 series IP Dome Camera Dimension

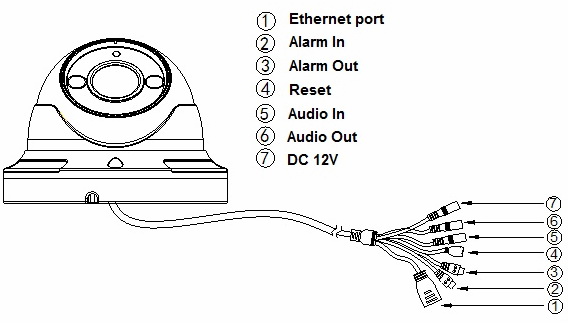

SC69 series IP Dome Camera Interfaces:

SC69 series IP Dome Camera Interfaces

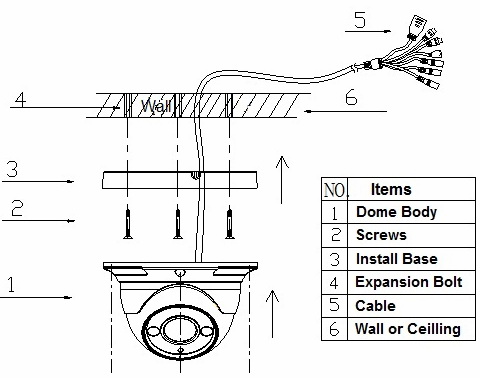

SC69 series IP Dome Camera Installation:

SC69 series installation grahpic
