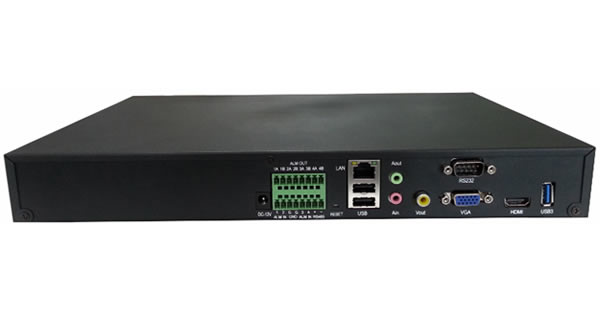

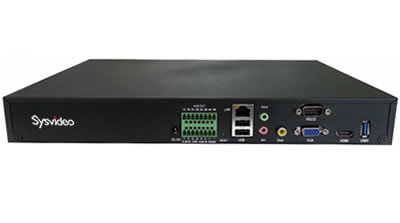

SD6016MP 16CH Network Video Decoder:  16ch D1/9ch 720P/5ch 1080P HD Megapixel Network Video(IP Camera) Decoder
SD6016MP is a high definition IP network video decoder, it can directly converter IP video from IP camera to HDMI, VGA format video to display or monitor, you don’t need to install a computer to view the video. In addition, you can use a video wall management software to remote control the decoder how decode the video and how much channels video. It use embedded Linux & Hisilicon SoC chipset, it is more stable and cheaper than Windows computer, it is the best solution to display multiple high definition IP cameras to video wall.
● Maximum decoding capacity: 16ch D1 /9ch 720P /5ch 1080P /1ch 5 megapixel ( need special firmware) network video from Sysvideo megapixel IP camera
● Video output: 1ch HDMI (1080P: 1920*1080@60/50HZ, UXGA: 1600*1200@60HZ, SXGA: 1280*1024@60HZ, 720P: 1280*720@60/50HZ, XGA: 1024*768@60HZ); 1 BNC; 1ch VGA (1080P: 1920*1080@60/50HZ, UXGA: 1600*1200@60HZ, SXGA: 1280*1024@60HZ, 720P: 1280*720@60/50HZ, XGA: 1024*768@60HZ)
● Split screen view: 1/4/9/16ch.
● Decoding resolution: 2592x1944@25fps,1920x1080@30fps,1280x1024@30fps,1280x720@30fps, compatible with Full D1, CIF and QCIF.
● PAL/NTSC is optional.
● Video wall management software
● Support two-way audio talking
● Support PTZ control
● Support alarm in / alarm out
Model: SD6016MP
High definition megapixel network video (IP camera) decoder
Main Functions
Decoding network video from IP camera to HD monitor or display, two-way audio talking, PTZ control, alarm output.
Video Output
1ch HDMI, 1ch VGA and 1ch CVBS
Video Compression
H.264 High Profile and MJPEG
Support IP Camera
Sysvideo IP cameras and video encoders
Video Input resolution
Main Stream:
960x576, 720x576, 704x576
 Sub Stream: 704x576, 704x288, 352x288, 172x144
Main Stream:
960x480, 720x480,
   Sub Stream: 704x480, 704x240, 352x240, 172x112
Video Frame Rate
PAL: 1-25 frames/second
NTSC:1-30 frames/second
Video Compression Bit rate
Audio Compression
G.726, G.711A, G.711U
Audio Input
1 channel, RCA port, liner input, Impedance:1KOhms
Audio Output
1 channel, RCA port, linear output
Alarm Input
4 channel on/off input, supporting NO (normally open) or NC (normally close) sense.
Alarm Output
4 channel on/off output,120VAC 1A/24VDC 1A
Communication Interface
10M/100M self-adapting Ethernet port,
RS485 port, RS232
Input Power Supply
DC 12V,1A
Maximum Power
Less than 10W
Operating Temperature
-10 ~ +55
Operating Humidity
10 ~ 85%
350mm(L) * 44mm(H)* 236mm(D)
16 channel IP network video HD decoder
