SE8000 Series: Network Video Centralized Encoder Platform

Description:
SE8000 series are professional centralized network video encoder box, it can install 1 - 8 pieces SE6000 video encoder mainboard, support 1 - 32 channels analog encoder, it's very convenient to middle or large scale project.

Features Specifications Dimensions

Key Features
• Optional 1/2/4channel CIF or D1 encoded card,each card supports up to 4-channel CVBS analog video input
• Supports up to 8 encoded card
• Maximum digital images resolution:D1(704*576)
• H.264/MJEG is optional, dual streaming,high compression ratio,and high quality.
• Live sound recording. network two-way talking. audio broadcasting
• Support RS485 communication protocol, support for multiple PTZ control protocols, transparent serial data transmission
• Support SDHC storage; SD2.0 standard
• Supports TCP / IP, UDP, RTP, RTCP, RTSP and other network protocols
• Built-in Web server enables the use of a standard Web browser for viewing and management.
• Support BNC adapter,used to connect a monitor to display video images
• Standard 5U chassis, built-in power module, the Whole machine power supply

Extension Models
1-channel CIF:SE80001C-1~SE80001C-8
2 -channel CIF:SE80002C-1~SE80002C-8
4- channel CIF:SE80004C-1~SE80004C-8
1 -channel D1:SE80001D-1~SE80001D-8
2- channel D1:SE80002D-1~SE80002D-8
4- channel D1:SE80004D-1~SE80004D-8

Model

SN8001/2/4/C/D-1~8

Interfaces
Video input	CVBS input	1/2/4*（1~8）channel,BNC connector(Level :1.0Vp-p,Impedance:75Ω),PAL/NTSC Self-adapting
Audio input		1/2/4*（1~8）channel,RCA connector(Level :2.0Vp-p,Impedance:1KΩ)
Audio output		1*(1~8)channel linear output, RCA adapter
AudioTalkback		1*(1~8)channel,3.5 mm audio interface(Level :2.0Vp-p,Impedance:1KΩ)
Network Interface		1*(1~8)channel 10/100M BASE-TX,RJ-45 connector
Alarm input		4*(1~8)channel
Alarm output		4*(1~8)channel
Control Interface		1(1~8)RS485, 1(1~8)RS232
Storage Interface		1*(1~8)SDHC card supports video storage and image snapping; SD2.0 standard,maximum storage 32G( Presets before delivery)

Audio video encoding
Video Compression	H.264 Main Profile@Level 3.0 , MJPEG/JPEG Baseline
Dual stream	Supports
Resolution	D1:704576(PAL);704480(N) Half-D1:704288(PAL);704240(N) CIF:352288(PAL);352240(N) QCIF:176144(PAL);176112(N)
Video frame rate	PAL:1-25fps/sec;N:1-30fps/sec(4-channel D1 model Only supports 1-15fps/sec)
Video Bitrate	32Kbps~16Mbps,Supports CBR/VBR
Title OSD	Supports channel name, date, and video stream information overlay;OSD location is adjustable
Audio Compression	G711A,G.726,G711U

Data transmission and storage
Data storage		Video and Image
Recording		Recording set up to record by motion trigger,alarm trigger, manual, or schedule
Alarm Output		FTP,E-mail, Explorer, Software
Network protocol		TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
Wireless protocols		802.11b/g. Supports WEP,WPA,WPA2
ONVIF protocol		Supports
Remote View	Computer	IE 6.0 or up, max 10user
	Mobile Phone	Windows Mobile,Symbian,iPhone

General Parameters
Chassis Systems	Chassis, power plate, etc
Card slot	8
Operating Temperature	-10℃ - +55℃
Operating Humidity	0% - 90%
Power	AC110`240V 50/60HZ
Power Consumption	48W(MAX)
Chassis	16 inches standard 5U Chassis
Weight	7.5Kg(8 cards)

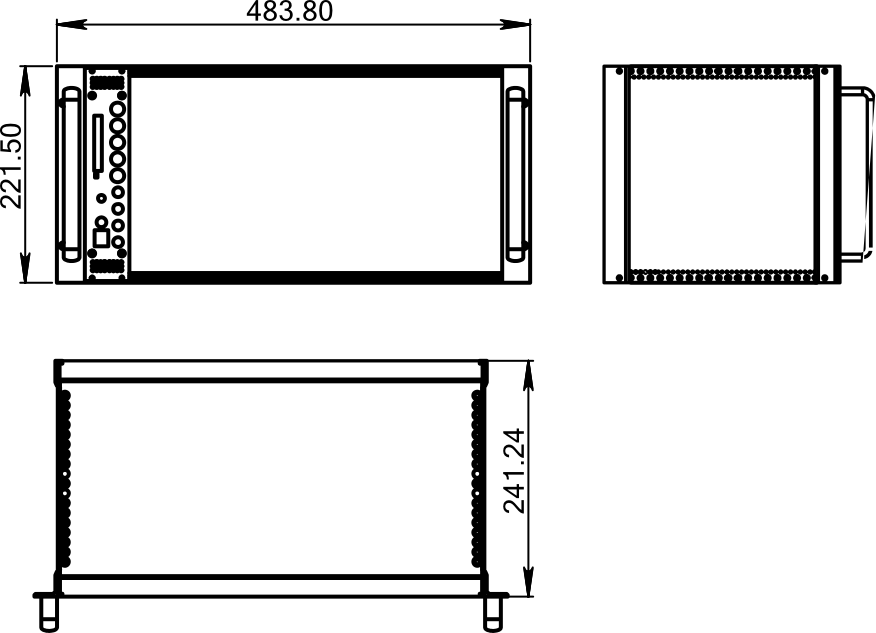

Dimension Drawing:
