SN7216-16PoE:  16ch 1080P 2 SATA HDD Embedded NVR Built-in 16 Ports PoE Switch
Description:
SN7216-16POE is a standalone high definition network surveillance video recorder with 16 PoE ports switch. It uses embedded Linux system which keep device away from the computer viruses. It can support 16 channels 1080P 2.0 megapixels (or 16 channels 720P 1.0 megapixels) network cameras at same time. You can watch every detail through HDMI output to high definition monitor. It built-in 2 bay hard disk drive, that can save the video for up to two months. It built-in 8 ports PoE switch, you don't need to buy additional switch, if you use Sysvideo PoE IP camera, it can realize really Plug & Play. It's special suitable to use for small business and enterprise security system, like supermarket, building, bank.
● Support 16 channels 1080P (8Mbps) or 16 channels 720P (4Mbps) IP camera input, monitor, record.
● Support 16 port POE power supply to IP camera;
● Support for the latest ONVIF 2.4 specification, backward compatible;
● Supports up to 5 megapixels network camera
● Support TV, VGA, HDMI sync output; HDMI and VGA video output resolution up to 1920 × 1080
● The mouse can realize three-dimensional intelligent positioning function
● Support up to 8 channels of simultaneous playback
● Support 2 SATA interfaces
● Support HDD SMART technology, and support for hard disk damage skip, drastically reduce  data loss due to hard disk failure;
● Support Google Drive, Dropbox, Baidu cloud storage, alarm capture synchronization, video backup function;
● Built P2P services can be accessed through a browser, mobile phones, PC clients achieve global Internet;
● Support NTP (network time), SADP (IP automatic search), Email (mail service), UPNP (Universal Plug and Play)

Model
SN7216-16POE
System
Chips
Hi3535
Operation System
Embedded LINUX
Pentaplex function
Live monitoring, recording, playback, backup & remote access
Control Mode
Front panel, USB mouse, IR remote control, Network
Video
IP Camera Input
Total video bandwidth: 160Mbps
16ch.1080P@30fps
16ch.720P@30fps
16ch.D1@30fps
Support Protocol
ONVIF, SDK
Output
1 CVBS, BNC (1.0Vp-p,75 ohms)
1 HDMI, 1.3a,support 1920×1080 Resolution
1 VGA,1920×1080,1440×900,1280×1024,
1024×768,800×600 Resolution
Audio
Input
1 ch. BNC
Output
1 BNC (3.3Vp-p,4.7k ohms)
Bidirectional Talk
1ch. Standalone
Display
Resolution
5 megapixel 3 megapixel /1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame
1~30fps
Tour Display
Support
Privacy Masking
Four zones for privacy masking for each channel
Recording
Video Compression
H.264/MPEG 4 AVC,up to Main Profile 5.0
Audio Compression
G.711A
Image Encoding
Adjustable encoding quality, variable code stream/fixed code stream
Dual Stream
Support
Recording Mode
Manual, auto, motion detection, schedule
Time bar
Support
Video Detection&Alarm
Trigger Events
Recording, PTZ, Tour,Email
Motion Detection
396 (22×18) detection zone, variable sensitivity levels
Capture
JPEG capture
Alarm Input
8ch.
Alarm Output
3ch.NO,NC
Playback&Backup
Max Playback
1/2/4/8/16 ch.
Backup Mode
USB,HDD,Network Backup, Cloud storage
Network
Ethernet
1 RJ-45 port (10M/100M)
Network protocols
TCP/IP, UDP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, RTSP, SMTP, UPNP, P2P, ONVIF, SADP, IP address filter, QoS, Multicast, 3G, Network alarm
Cloud Storage
Google Drive, Dropbox, Baidu
Remote Operation
Monitoring,PTZ control,playback,system setting,file download,log information
Smart Phone
iPhone,iPad,Android,Blackberry,Windows Mobile
Hard Disk
Hard Disk
2 SATA ports
HDD Management
Hard disk hibernation technology, HDD faulty alarm
Auxiliary Interface
USB Interface
2 USB 2.0 ports
RS485
Standard 485, half duplex,PTZ control
POE Function
POE function
16 ports
IEEE 802.3af
RJ45 10M/100M
Environment
Power Supply
DC12V/3.3A
DC48V/4A(POE)
Power Consumption
10W (without HDD)
Working Environment
-10℃~+55℃ / 10%-90%RH
Dimension(W*D*H)
1U, 360x250x48 (mm)
Weight
2Kg (without HDD)
Installation
Desk type

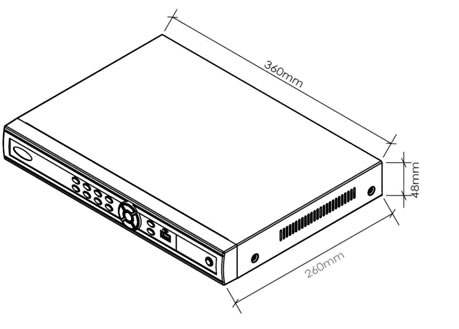

SN7200 dimension
