You are here:Home > Products > Megapixel IP Cameras > IR Bullet IP Cameras

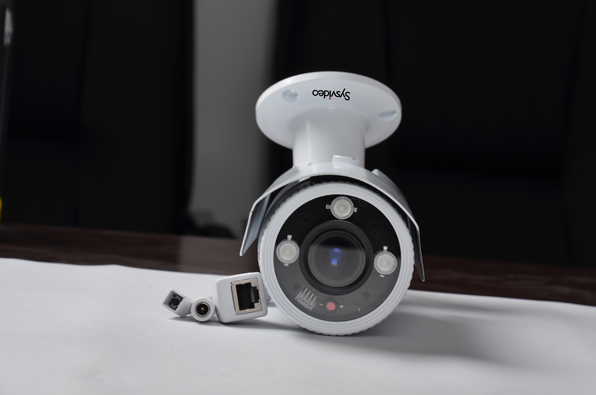

SC6420 Series 2MP CCTV Middle IR Bullet Sony Exmor:  2.0 Megapixel 1080P Full HD Waterproof Bullet IP Camera
Description:
2.0 Megapixel outdoor water-proof IR bullet IP camera, it uses Sony Exmor 1/2.8" Progressive Scan CMOS sensor and H.264 compression algorithm, support WDR (wide dynamic range ), 3D Noise Reduction, video rotation and low-light function, it can get perfect image in a variety of lighting conditions. The max resolution is 1920x1280@30fps. Its water-proof level is IP66. It's suitable for outdoor environment where no light at night, like wall, gate, entrance, park, road and etc.
Sony Exmor 1/2.8" Progressive Scan CMOS sensor, super low light.
Resolution:
  Support  1920*1080(25/30fps).
 H.264/MJEG is optional, dual streaming, low bandwidth, high quality.
 Super low light sensor
 Support digital WDR.
 Support intelligence 3D denoise, adaption stationary and moving image.
Support POE, waterproof.
Support AE, AWB, AGC, DC auto irse lens.
 Support protocols: ONVIF, RTSP, RTP, HTTP, TCP/IP, UDP, SMTP, PPPoE, DDNS, DNS, SNTP, DHCP, FTP.
 Support pravicy zone mask (max 4 individal mask zone).
 Alarm recording: video lost, motion detection and sensor alarm.
 Built-in Web server enables the use of a standard Web browser for viewing and management.
  DC12V/PoE power supply(options).

SC6420 Series Ordering Information:

1.       SC6420-L04    lens 4mm
2.       SC6420-L06    lens 6mm
3.       SC6420 -L08    lens 8mm
4.       SC6420 -L12    lens 12mm
5.       SC6420-L16    lens 16mm
6.       SC6420 -T12   lens 2.8--12mm
7.       SC6421-L04   POE, lens 4mm
8.       SC6421-L06    POE, lens 6mm
9.       SC6421-L08    POE, lens 8mm
10.    SC6421-L12    POE, lens 12mm
11.    SC6421-L16   POE, lens 16mm
12.    SC6421-T12   POE, lens 2.8--12mm

SC64 Series Images














Sysvideo SC6421 2.0 Megapixel IP BULLET CAMERA DOME Record

(Note: The video has been compressed twice ,so not as good as original demo video.If want to check live demo ,please contact us .)





Model
SC6420 Series
Type
Full HD IP Watorproof Box Camera
CPU
ARM A9
SoC Chip
HISILICON Hi3516
Sensor
SONY Exmor 1/2.8" Progressive Scan CMOS sensor,super low light
Effective Pixels
1920(H)×1080(V) , 2.1 mega pixel
Min.Illumination
 0Lux,IR on
IR led light
40IR LED lights, IR working distance: 25m
Dynamic Range
100dB,digital WDR ON
S/N
≥50db(AGC OFF)
Auto Electronic Shutter
1/25(1/30)—1/10000sec
Network Interface
LAN 10/100M BASE-TX, , RJ-45 connector
Video Compression
H.264 Main Profile Level 4, MJPEG/JPEG Baseline
Resolution
Master Streaming
1920*1080,1-30 fps/sec
1280*720,1-30 fps/sec;
Second Streaming
640*320,1-30 fps/sec;
320*160,1-30 fps/sec;
160*112,1-30 fps/sec
Video Bitrate
32Kbps~16Mbps,Supports CBR/VBR
Title OSD
Supports channel name, date, and video stream information overlay;OSD location is adjustable
Data storage
video audio and picture
Recording
Recording set up to record by motion trigger,alarm trigger, manual, or schedule
Alarm Output
E-mail, Explorer, Software
Network protocol
ONVIF、TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP
Remote View
Computer
IE 6.0 or up, max 5 user
Mobile Phone
Windows Mobile、Symbian、iPhone
Operating Temperature
-10℃ - +55℃
Operating Humidity
0% - 90%
Wator and Dust Proof
IP66
Power
DC12V/POE(IEEE 802.3af)(Optional)
Power Consumption
6W(MAX)
Dimension
318(L) *110(W)*90(H)mm
Weight
0.5KG
2.0 Megapixel Full HD IP Waterproof Bullet Camera Interface
