SC6410B Series 1.3MP CCTV IR Bullet Network Cameras: 1.3 Megapixel Outdoor Sony Exmor 720P HD Waterproof Bullet IP Camera

Description:
1.3 Megapixel outdoor water-proof IR bullet IP camera, it uses Sony Exmor 1/3" Progressive Scan CMOS sensor and H.264 compression algorithm, support WDR (wide dynamic range ), 3D Noise Reduction, video rotation and low-light function, can get perfect image in a variety of lighting conditions. The max resolution is 1280x1024@30fps. Its water-proof level is IP66. It's suitable for outdoor environment where no light at night, like wall, gate, entrance, park, road and etc.

Features Specifications Dimensions

• Sony Exmor 1/3" Progressive Scan CMOS sensor, super low light.

• Resolution:

Support 1280*1024(25/30fps).

• H.264/MJEG is optional, dual streaming, low bandwidth, high quality.

• Super low light sensor, 0.01Lux @F1.2, AGC ON

• Support digital WDR.

• Support intelligence 3D denoise, adaption stationary and moving image.

• Support POE, Vandal, Proof.

• Support AE, AWB, AGC, DC auto irse lens.

• Support defogging, digital image stabilizer, lens distortion correction.

• Support rotation by 90° or 270°, suit for long passage scene.

• Support analog Video surveillance output, Built-in 2 pins connector.

• Support protocals: ONVIF, RTSP, RTP, HTTP, TCP/IP, UDP, SMTP, PPPoE, DDNS, DNS, SNTP, DHCP, FTP.

• Support pravicy zone mask (max 4 individal mask zone).

• Alarm recording: video lost, motion detection and sensor alarm.

• Built-in Web server enables the use of a standard Web browser for viewing and management.

DC12V/PoE power supply(options).

SC6410BB Series Ordering Information:

1. SC6410B-L04 lens 4mm

2. SC6410B-L06 lens 6mm

3. SC6410B-L08 lens 8mm

4. SC6410B-L12 lens 12mm

5. SC6410B-L16 lens 16mm

6. SC6410B-T12 lens 2.8 - 12mm

7. SC6411B-L04 POE, lens 4mm

8. SC6411B-L06 POE, lens 6mm

9. SC6411B-L08 POE, lens 8mm

10. SC6411B-L12 POE, lens 12mm

11. SC6411B-L16 POE, lens 16mm

12. SC6411B-T12 POE, lens 2.8--12mm

SC64 Series Images

SC6411B 1. 3MP bullet IP Cam ourdoor daytime Record

(Note: The video has been compressed twice ,so not as good as original demo video.If want to check live demo ,please contact us .)

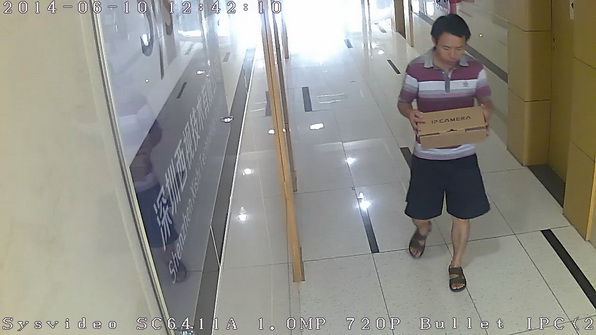

SC6411A 1 .0MP IR bullet Cam demo video Record

(Note: The video has been compressed twice ,so not as good as original demo video.If want to check live demo ,please contact us .)

Model		SC6410B Series
Type		HD IP Watorproof Box Camera
CPU		ARM9
SoC Chip		HISILICON Hi3518A
Sensor		SONY Exmor 1/3" Progressive Scan CMOS sensor,super low light
Effective Pixels		1280(H)×1024(V) , 1.3 mega pixel
Min.Illumination		Color Mode: 0Lux IR on
IR led light		40 IR LED lights, IR working distance: 25m
Dynamic Range		100dB,digital WDR ON
S/N		≥50db(AGC OFF)
Auto Electronic Shutter		1/25(1/30)—1/10000sec
Network Interface		LAN 10/100M BASE-TX, , RJ-45 connector
Video Compression		H.264 Main Profile Level 4, MJPEG/JPEG Baseline
Resolution	Master Streaming	12801024,1-30 fps/sec;1280720,1-30 fps/sec;
	Second Streaming	720576,1-30 fps/sec; 640320,1-30 fps/sec; 320*160,1-30 fps/sec;
Video Bitrate		32Kbps～16Mbps,Supports CBR/VBR
Title OSD		Supports channel name, date, and video stream information overlay;OSD location is adjustable
Data storage		video audio and picture
Recording		Recording set up to record by motion trigger,alarm trigger, manual, or schedule
Alarm Output		E-mail, Explorer, Software
Network protocol		ONVIF、TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP
Remote View	Computer	IE 6.0 or up, max 5 user
	Mobile Phone	Windows Mobile、Symbian、iPhone
Operating Temperature		-10℃ - +55℃
Operating Humidity		0% - 90%
Wator and Dust Proof		IP66
Power		DC12V/POE(IEEE 802.3af)(Optional)
Power Consumption		6W(MAX)

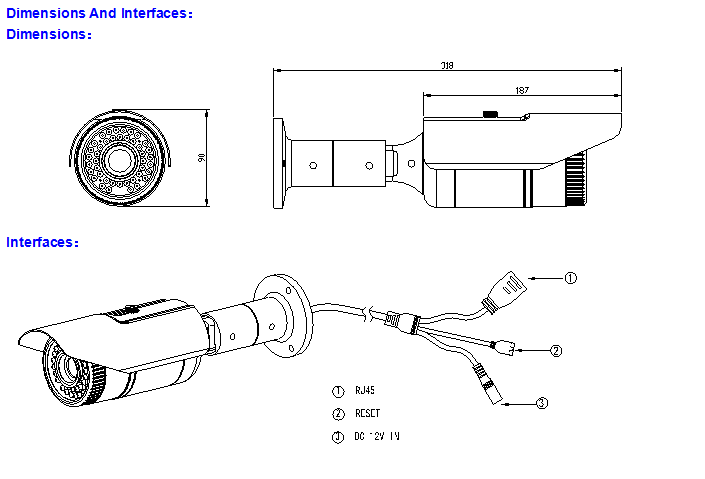

Dimension		318(L) 110(W)90(H)mm
Weight		0.5KG
