SC6310 Series 1.3MP HD Vandalproof Dome IP Cameras: 1.3 Megapixel Sony Exmor 720P HD Vandal Proof Dome IP Camera

Description:
1.3 Megapixel outdoor vandal proof dome IP camera, it uses Sony Exmor Progressive Scan CMOS sensor and H.264 compression algorithm, support WDR (wide dynamic range ), 3D Noise Reduction, video rotation and low-light function, it can get perfect image in a variety of lighting conditions. It's suitable for indoor or outdoor environment where need vandal proof or water proof camera, like bus, subway, bank and etc.

Features Specifications Dimensions

• Sony Exmor 1/3" Progressive Scan CMOS sensor, super low light.

• Resolution:

Support 1280*1024(25/30fps).

• H.264/MJEG is optional, dual streaming, low bandwidth, high quality.

• Super low light sensor, 0.001Lux @F1.2, ICR, AGC ON

• Support digital WDR.

• Support intelligence 3D denoise, adaption stationary and moving image.

• Support IR, POE, Vandal, Proof.

• Support AE, AWB, AGC, DC auto irse lens.

• Support defogging, digital image stabilizer, lens distortion correction.

• Support rotation by 90° or 270°, suit for long passage scene.

• Build in 1 channel audio input and audio output ports, support realtime audio capture and two-way talking.

• Support analog Video surveillance output, BNC connector.

• Built-in micro SD card slot, support TF card.

• Support protocals: ONVIF, RTSP, RTP, HTTP, TCP/IP, UDP, SMTP, PPPoE, DDNS, DNS, SNTP, DHCP, FTP.

• Support pravicy zone mask (max 4 individal mask zone).

• Alarm recording: video lost, motion detection and sensor alarm.

• Built-in Web server enables the use of a standard Web browser for viewing and management.

DC12V/PoE power supply(options).

SC6310 Series Ordering Information:

Model	Function optional
	Lens	IR	POE	Waterproof
Waterproof, IR
SC6310-L28	2.8mm	Yes		Yes
SC6310-L04	4mm	Yes		Yes
SC6310-L06	6mm	Yes		Yes
SC6310-L08	8mm	Yes		Yes
SC6310-T12	2.8—12mm	Yes		Yes
Waterproof, IR, POE
SC6311-L28	2.8mm	Yes	Yes	Yes
SC6311-L04	4mm	Yes	Yes	Yes
SC6311-L06	6mm	Yes	Yes	Yes
SC6311-L08	8mm	Yes	Yes	Yes
SC6311-T12	2.8—12mm	Yes	Yes	Yes
Waterproof, No IR, No POE
SC6313-L26	2.6mm			Yes
SC6313-L04	4mm			Yes
SC6313-L06	6mm			Yes
SC6313-L08	8mm			Yes
SC6313-T12	2.8—12mm			Yes

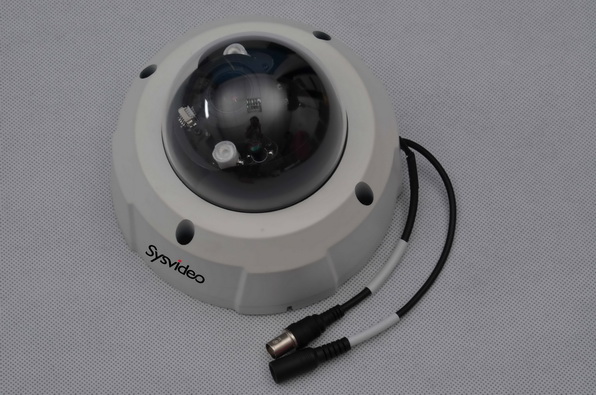

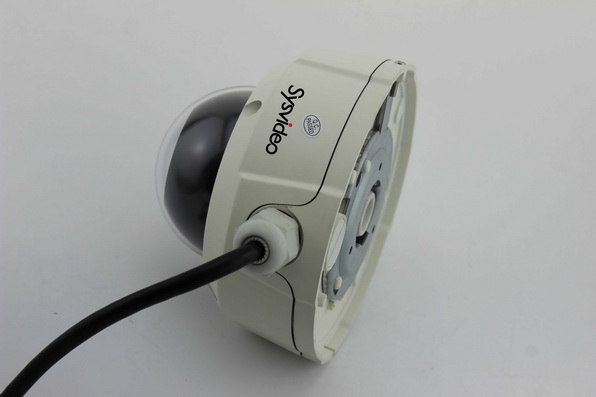

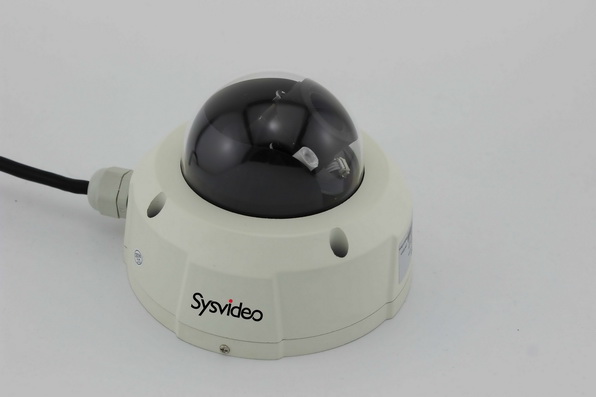

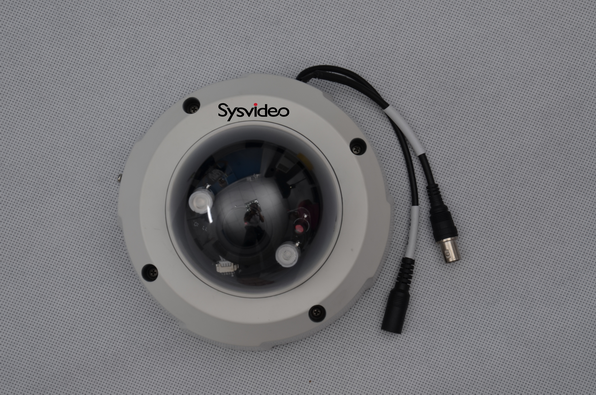

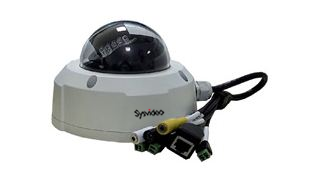

SC63 Series Images

Model		SC6310 Series
Type		HD IP Vandal Proof Dome Camera
CPU		ARM9
SoC Chip		HISILICON Hi3518A
Sensor		SONY Exmor 1/3" Progressive Scan CMOS sensor,super low light
Effective Pixels		1280(H)×1024(V) , 1.3 mega pixel
Min.Illumination		Color Mode: 0.1Lux@F1.2(AGC ON) ,Black/White: 0.001Lux @F1.2(ICR, AGC ON)
IR LED		18 IR LED lights, IR working distance: 15m(optional)
Dynamic Range		100dB,digital WDR ON
S/N		≥50db(AGC OFF)
Auto Electronic Shutter		1/25(1/30)—1/10000sec
Video output		1 channel,480TVL,2 pin socket
Audio Talkback		1 channel MIC input，Built-in OR External access
Audio Output		1 channel linear output
Storage Interface		SDHC card supports video storage and image snapping; SD2.0 standard,maximum storage 32G
Network Interface		LAN 10/100M BASE-TX, , RJ-45 connector
I/O		1-channel input, Normally Open/Normally Close modes adjustable; 1-channel output, 120VAC 1A/24VDC 1A,1-channel RS232 interface
Video Compression		H.264 Main Profile Level 4, MJPEG/JPEG Baseline
Resolution	Master Streaming	12801024,1-30 fps/sec;1280720,1-30 fps/sec;
	Second Streaming	720576,1-30 fps/sec; 640320,1-30 fps/sec; 320*160,1-30 fps/sec;
Video Bitrate		32Kbps～16Mbps,Supports CBR/VBR
Title OSD		Supports channel name, date, and video stream information overlay;OSD location is adjustable
Audio Compression		G.726、G.711
Data storage		video audio and picture
Recording		Recording set up to record by motion trigger,alarm trigger, manual, or schedule
Alarm Output		E-mail, Explorer, Software
Network protocol		ONVIF、TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP
Remote View	Computer	IE 6.0 or up, max 5 user
	Mobile Phone	Windows Mobile、Symbian、iPhone
Operating Temperature		-10℃ - +55℃
Operating Humidity		0% - 90%
Wator and Dust Proof		IP66
Power		DC12V/POE(IEEE 802.3af)(Optional)
Power Consumption		3W(IR led off),5W(MAX IR led on)

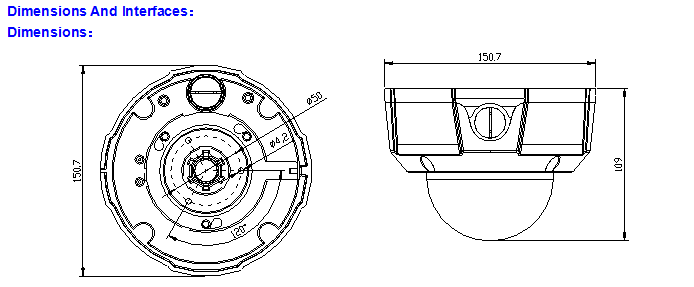

Dimension		151(R) *109(H)mm
Weight		0.85KG

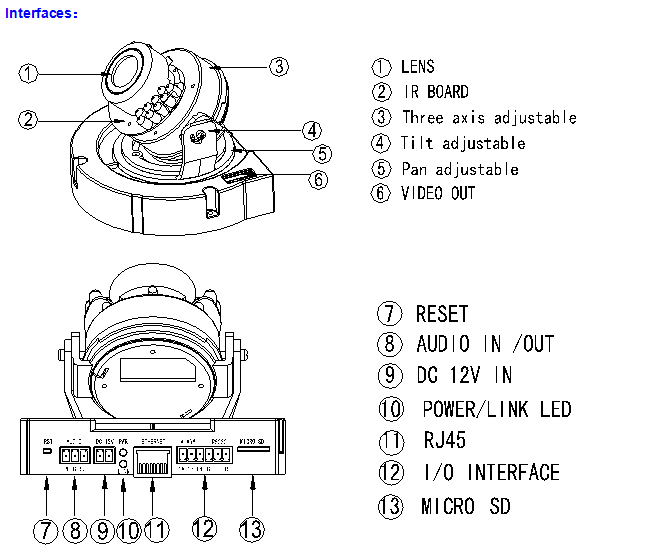

I/O interface definition:

1	1A: ALARM Output	4	G: ALARM Input GND
2	1B: ALARM Output	5	T: RS232 T
3	IN: ALARM Input	6	R: RS232 R
