You are here:Home > Products > Megapixel IP Cameras > Dome IP Cameras

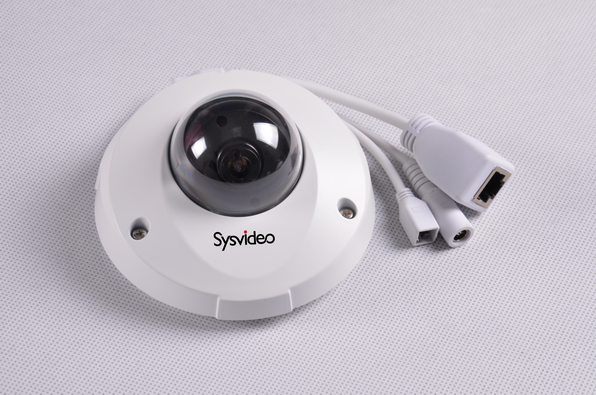

SC6710B 1.3MP Mini Dome Network Cameras:  1.3 Megapixel 720P HD Vandal Proof Mini Dome IP Camera
Description:
SC6710 Series is a mini vandal proof mini dome PoE IP camera, it owns small size and beautiful appearance, it is very suitable for indoor surveillance application, like shop, restaurant.
Sony Exmor 1/3" Progressive Scan CMOS sensor, super low light.
Resolution:
  Support  1280*1024(25/30fps).
 H.264/MJEG is optional, dual streaming, low bandwidth, high quality.
 Super low light sensor, 0.01Lux @F1.2, AGC ON
Support digital WDR.
Support intelligence 3D denoise, adaption stationary and moving image.
 Support POE, Vandal, Proof.
 Support AE, AWB, AGC, DC auto irse lens.
Support defogging, digital image stabilizer, lens distortion correction.
 Support rotation by 90° or 270°, suit for long passage scene.
 Support analog Video surveillance output, Built-in 2 pins connector.
 Built-in micro SD card slot, support TF card.
 Support protocals: ONVIF, RTSP, RTP, HTTP, TCP/IP, UDP, SMTP, PPPoE, DDNS, DNS, SNTP, DHCP, FTP.
Support pravicy zone mask (max 4 individal mask zone).
Alarm recording: video lost, motion detection and sensor alarm.
Built-in Web server enables the use of a standard Web browser for viewing and management.
DC12V/PoE power supply(options).
SC6710 B Ordering Information:

1.      SC6710-L26    lens 2.6mm
2.      SC6710-L42    lens 4.2mm
3.      SC6710-L06    lens 6mm
4.      SC6710-L08    lens 8mm
5.      SC6711-L26 POE, lens 2.6mm
6.      SC6711-L42  POE, lens 4.2mm
7.      SC6711-L06 POE, lens 6mm
8.      SC6711-L08 POE, lens 8mm

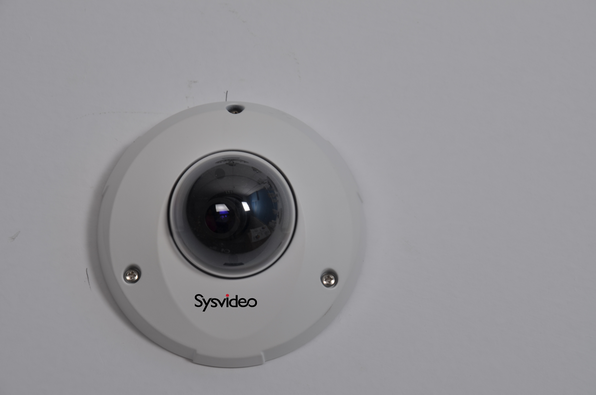

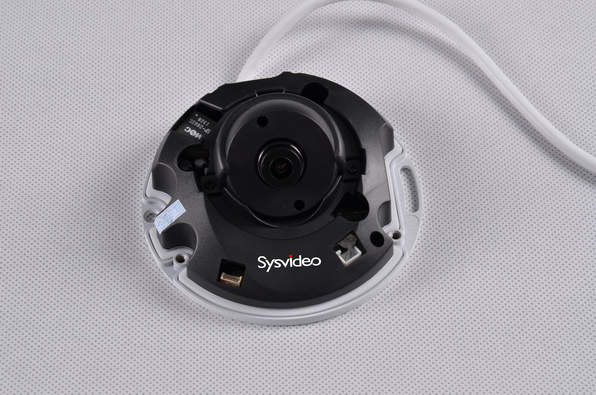

SC68 Series Images
Model
SC6710 B
Type
HD IP Vandal Proof Mini Dome Camera
CPU
ARM9
SoC Chip
HISILICON Hi3518A
Sensor
SONY Exmor 1/3" Progressive Scan CMOS sensor,super low light
Effective Pixels
1280(H)×1024(V) , 1.3 mega pixel
Min.Illumination
Color Mode: 0.1Lux@F1.2(AGC ON) ,Black/White: 0.001Lux @F1.2(ICR, AGC ON)
Dynamic Range
100dB,digital WDR ON
S/N
≥50db(AGC OFF)
Auto Electronic Shutter
1/25(1/30)—1/10000sec
Video output
1 channel,480TVL,2 pin socket
Storage Interface
Mini SD card supports video storage and image snapping; SD2.0 standard,maximum storage 32GB
Network Interface
LAN 10/100M BASE-TX, , RJ-45 connector
Video Compression
H.264 Main Profile Level 4, MJPEG/JPEG Baseline
Resolution
Master Streaming
1280*1024,1-30 fps/sec;1280*720,1-30 fps/sec;
Second Streaming
720*576,1-30 fps/sec;
640*320,1-30 fps/sec;
320*160,1-30 fps/sec;
Video Bitrate
32Kbps~16Mbps,Supports CBR/VBR
Title OSD
Supports channel name, date, and video stream information overlay;OSD location is adjustable
Audio Compression
G.726, G.711
Data storage
video audio and picture
Recording
Recording set up to record by motion trigger,alarm trigger, manual, or schedule
Alarm Output
E-mail, Explorer, Software
Network protocol
ONVIF, TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
Remote View
Computer
IE 6.0 or up, max 5 user
Mobile Phone
Windows Mobile, Symbian, iPhone
Operating Temperature
-10℃ - +55℃
Operating Humidity
0% - 90%
Wator and dust Proof
IP66
Power
DC12V/POE(IEEE 802.3af)(Optional)
Power Consumption
2W(MAX)
Dimension
106(R) *54(H)mm
Weight
0.3KG

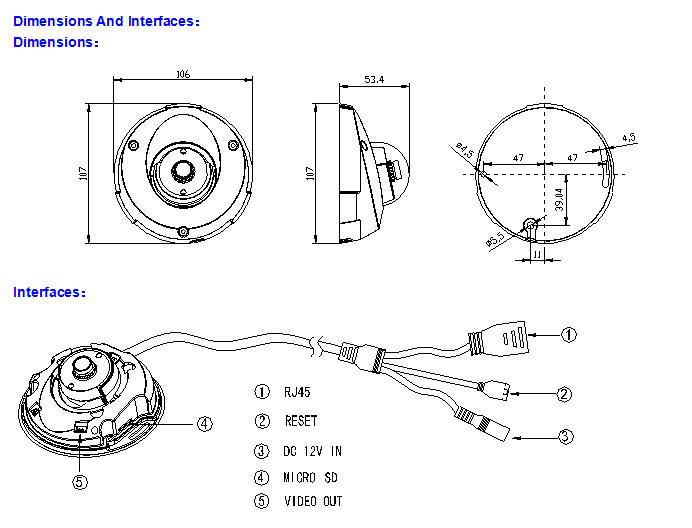

1.3 Megapixel 720P HD Vandal Proof Mini Dome IP Camera demension and interface
