Wireless IP Surveillance Solution for TOWER CRANE in Philippine 201309

This is a special project for coal tower crane in, power plants. The driver need to watch the full vision on the monitor, so using Sysvideo HD high speed dome IP camera and decoder, PTZ control to build a high definition IP CCTV surveillance system.

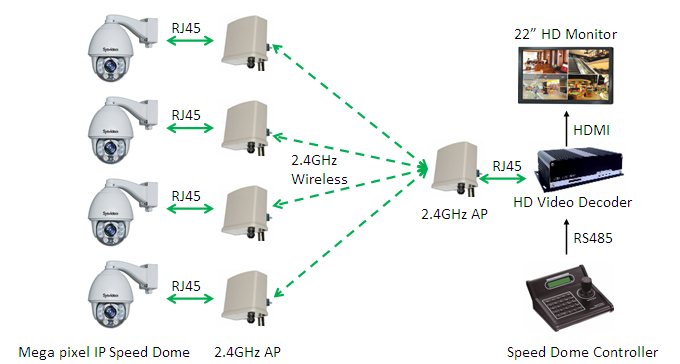

System Architecture

Device List:

Name	Model	Picture	Specification	Set
IP Cameras
Speed Dome Camera	SC6620-S20		2.0 Megapixel 1080P CMOS IR Speed Dome IP Camera, Sony Exmor 1/2.8" CMOS sensor, 20x Zoom,12x digital zoom camera module,low-light, WDR, Day/Night, AWB, AGC, BLC,smart 3DNR ( 3D Noise Reduction), wiper, waterproof cable box and metal housing, Built-in PoE, Micro SD Card Slot, IR distance: 150M.	4
Wireless Device
Outdoor 2.4GHz Wireless Bridge	BMW-N2402		Built-in 14dB antenna, 2.312-2.622GHz, 802.11b/g/n, 100mW(20dB), 150M bandwidth, Atheros CPU400MHz, 32M memory, 8M flash. 1 X 10/100 BASE-TX (Cat. 5, RJ-45) interface, 6 Watts. -30 ℃ to +80 ℃ . Distance: 3km	5
Network Video Decoder
HD network video decoder	SD6000MP		it can convert megapixel IP video to analog video, then output to monitor through VGA, YPbPr, BNC, HDMI inteface. It support 1080P/720P/D1/Half D1/CIF and so on resolution.	1
PTZ Speed Dome Controller Keyboard
PTZ Speed Dome Controller Keyboard	AT505		3 dimension joystick control, to realize pan/ tilt/zoom control of the dome camera	1
Monitor
22" LCD Monitor	22B22A		1920X1080, 22" LED, HDMI,BNC, VGA input	1
