1. Parking System Requirement:

In the management of modern parking lots, the parking management involves various aspects, and the management of vehicles is an important aspect. Especially for government, enterprise buildings, industrial parks, and residential communities, it is required to strictly manage various vehicles in real time, strictly monitor the time of their entry and exit, and register various types of vehicles (including internal vehicles and external vehicles) and identification. For large-scale field areas, there are many kinds of vehicles entering and exiting. For example, each vehicle must be judged manually, which is time-consuming, unfavorable to management and inquiry, and is difficult to defend and inefficient. In order to improve this mode of management that is not commensurate with modern parking lots, government, corporate buildings, industrial parks, and residential quarters, it is necessary to realize the automation and intelligence of vehicle management as soon as possible and to manage them in the form of computer networks. Entrance and exit vehicles are effectively and accurately monitored and managed. The system is required to provide corresponding application software to achieve efficient and intelligent parking management.

2. Sysvideo Intelligent Parking System Description & Features

2.1 System Description

The system uses high definition video stream license plate automatic recognition algorithm, the vehicle capture, number plate recognition, when the vehicle enters the entrance of the community, license plate automatic recognition algorithm automatically captures the vehicle photos and identify the license plate number, the license plate number, the color, license plate characteristic data, and entry time information are recorded and transmitted. The vehicles can enter and exit the parking lot without barriers, providing users with a brand-new service mode.

The system automatically recognizes the number and license plate characteristics of the vehicle entering the community, verifies the user's legal identity, automatically compares the blacklist database, and automatically alerts, and can monitor and manage the entire parking area, including entrance and exit management, internal management, acquisition, and storage. Data and system work status for administrators to monitor, maintain, count, query, and print reports. The vehicle access to the community is completely under the system monitoring, so that the community's access, charges, security, parking management fully intelligent, automated and has the advantages of convenience, safety, and reliability.

2.2 System Features

l The recognition system's reliance on the environment is reduced to the minimum level, realizing normal work around the clock, and the recognition rate remains high.

l The LPR identification system improves the speed and accuracy of recognition.

l The recognizable minimum number plate is (60-120) pixels (wide)

l Adapt to the complex climate and lighting conditions, such as cloudy, rainy, and night, can still guarantee high recognition rate.

l Adapting to high-speed and high-speed traffic, the vehicle speed is 20 km/h, and the high recognition rate (>98%) can still be guaranteed when the single lane traffic is 30 vehicles/minute.

l Realizes frame-by-frame processing of video images. The video stream triggers without embedding the sense coils (dual channels) to avoid road damage.

l The installation of the project is easy and the operation is stable, without disturbing the user's existing system.

l With high processing power, it can recognize and process all images in the process of vehicle travel and does not depend on single images, effectively improving the adaptability of the equipment to complex environments.

Adaptability to different lighting

The project site environment is more complex, such as smoke, rain, snow, sunlight from different angles of illumination, lights and large billboards, etc. may cause interference to the identification system, especially the use of external trigger recognition equipment, its recognition rate is serious Depending on the captured picture, the license plate of the vehicle is in the disturbed position at the instant of capture, which can cause misidentification. The license plate recognition algorithm of our company carries out frame-by-frame real-time processing of video images. During the movement of the vehicle, the angle and light are constantly changing. The license plate is always clear at certain moments, and certain license plate clear video frames will be collected. For analysis and identification, our company's license plate recognition equipment is highly resistant to light and climate.

Adaptability to vehicles and ultra-low speed vehicles

Due to the adoption of a high-speed algorithm platform that adapts to a speed of 20 km/h, the vehicle can accurately identify the number of the license plate number when it is traveling at ultra-high speed (Shaoguan rushed vehicles) or at extremely low speeds, avoiding the incapability of capture due to high-speed vehicle traffic intersections. The phenomenon occurs.

2.3 The System Working Process

When the vehicle reaches the parking lot entrance camera identification area, the camera automatically recognizes the license plate number and makes a judgment on the vehicle type according to the system white list.

Internal car : automatic gate release / manual gate release optional, vehicle access information and pictures to save the database.

Temporary vehicles: automatic gate release / manual gate release optional, timing and save the entrance capture pictures to the database.

Unable to confirm the vehicle: Manually release, manual entry of license plate number, manual modification of license plate number, record database.

Vehicle Exit Process

Description:

The vehicle reaches the area entrance camera identification area, automatically recognizes the vehicle license plate number, and makes judgments on the vehicle type. Internal car: automatic gate release / manual gate release optional, vehicle access information and pictures to save the database.

The

Temporary vehicles: automatic gate release / manual gate release optional, timing and save the entrance capture pictures to the database. If fees are charged, the fee will be charged according to the standard of the temporary vehicle charges. Manual release is generally preferred.

Unable to confirm the vehicle: manual release, manual entry of license plate number, record database, and correct cost.

3. license plate recognition system installation

Each entrance is erected with a camera column with a height of 2.0-2.8 meters. The column is equipped with a special camera for license plate recognition. The camera lens points to the ground where the sense of lane is about 4.0-4.5 meters to align the license plate.

The specific installation location is shown in the figure below.

Equipment installation diagram 1

Specific construction requirements, according to the site conditions to make additional details. Different construction sizes, choose different focal length lenses.

4. Sysvideo License Plate Recognition System Specifications

4.1 Sysvideo License Plate Recognition System Specifications

In the normal city license plate cleanliness situation, the license plates are unobstructed, and the average letter and digit recognition rate can reach over 99%. Through the application of regional enhanced templates, the entire card recognition rate (including license plate Chinese characters) can reach over 99%.

Single plate identification time: <0.2 seconds

The whole card recognition rate: >98% (full-card recognition rate = completely correct number of cards/natural traffic volume)

Number plate detection rate: >99.9%

Allowed vehicle speed: 0~20 km/h

Output image resolution: 1920x1080

Output information: vehicle map, license plate number, access time

The

4.2 Sysvideo License Plate Recognition Camera Introduction

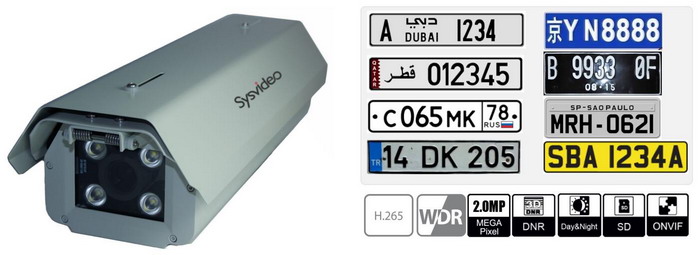

Sysvideo SC6121PZ is one professional Automatic Number Plate Recognition (ANPR), License Plate Recognition (LPR) IP Camera, it use Deep Learning AI(Artificial Intelligence) technology to continuously improve the recognition accuracy, support Russia

, Turkey, UAE, Qatar, Saudi Arabia, France, Indonesia, Singapore, Malaysia, Brazil, etc..countries (different software version) license plate capturing, recognition. Support whitelist control, license plate number OSD, provide SDK for software system integration, support RS485, I/O control. Support video auto trigger, coil trigger, and mixed mode to capture the plate number.

It uses 1/2.8" Sony optical WDR Machine Vision CMOS sensor, up to multiple exposure wide dynamic range(WDR) >120db, starlight level super low light, highlight Compensation (HLC). It built-in 4 x LED white light, support H.265/H.264/MJPEG encoding.

It is one good solution for parking control system, traffic management, security system.,etc applications.

AI (Artificial Intelligence) Technology

Sysvideo LPR camera built-in Deep Learning algorithm which are most popular on artificial intelligence industry, it has the ability to learn from itself, and the accuracy is high much than traditional recognition software, and it is easier to extend different countries plate number.

Wide Dynamic Range (WDR)

The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

H ighlight Compensation (HLC)

HLC can reduce the strong light from the vehicle lamp, it still can get clear plate number at night.

Camera Specifications:

4.Sysvideo Intelligent Parking Management System Functions

The automatic license plate recognition algorithm can be flexibly mounted on various management systems that require license plate recognition functions. From the usual considerations, the management software has the following functions:

l Management System Interface

l Incoming and outgoing record query report

l Charge record report and inquiry

l Temporary vehicle charges

l License Plate Recognition: The license plate recognition adopts the license plate automatic recognition algorithm technology and can achieve all-weather work. Uses pure video algorithm recognition to work without feeling

l Vehicle access data storage archive

l License plate number automatic comparison function, through the database query, compare the license plate number, classification processing

l Supports temporary billing vehicles, monthly car rentals, stored value vehicles, and free car class IV vehicles.

l License plate inquiries: can include: A: query by access time; B: query by location; C: query by vehicle license plate number and other query conditions

l Fuzzy query

l Traffic statistics function: statistics on vehicles entering and exiting in any direction at any time, generating statistical reports

l Print data list or list of query results

l External output voice and LED information display (this option)

l The license plate automatic recognition algorithm is used as the front end of the application system, and the back end needs a vehicle management system and database support to effectively utilize and reflect the license plate recognition function and play a significant role in the vehicle management system.

5 .2 Central Management S oftware

The parking lots management - including the definition of yard name, number of parking spaces, yard number. Can increase, modify.

User Management - contains operator rights management, user ID. Can increase, modify

System password modification, database connection settings, etc.

Vehicle Management contains three pieces

1) Internal vehicle authorization 2) Delay in recharging the internal vehicle 3) Internal vehicle deregistration.

Report query contains

1) Authorization report

2) owner report

3) Recharge report

4) Amount report

5) Billing report

6) In and out of the report

7) Entry and exit details report

8) parking lot status
