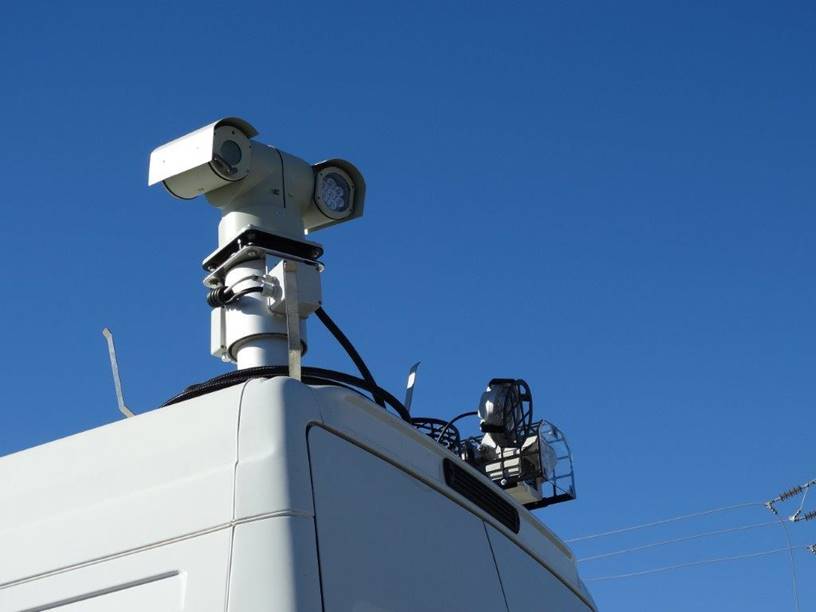

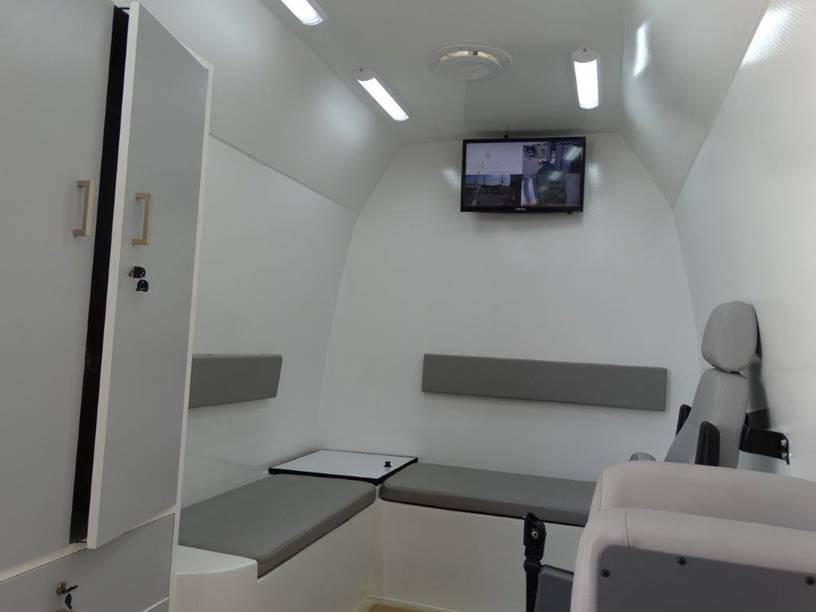

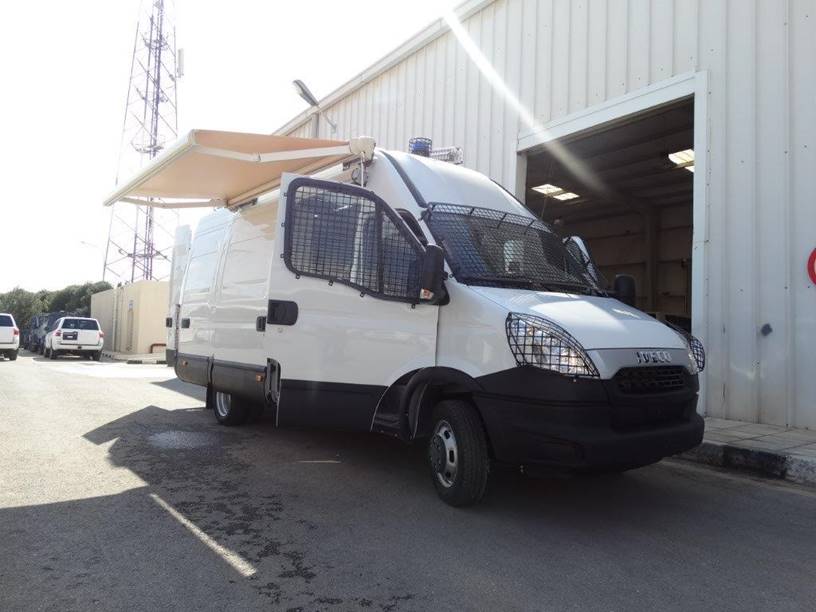

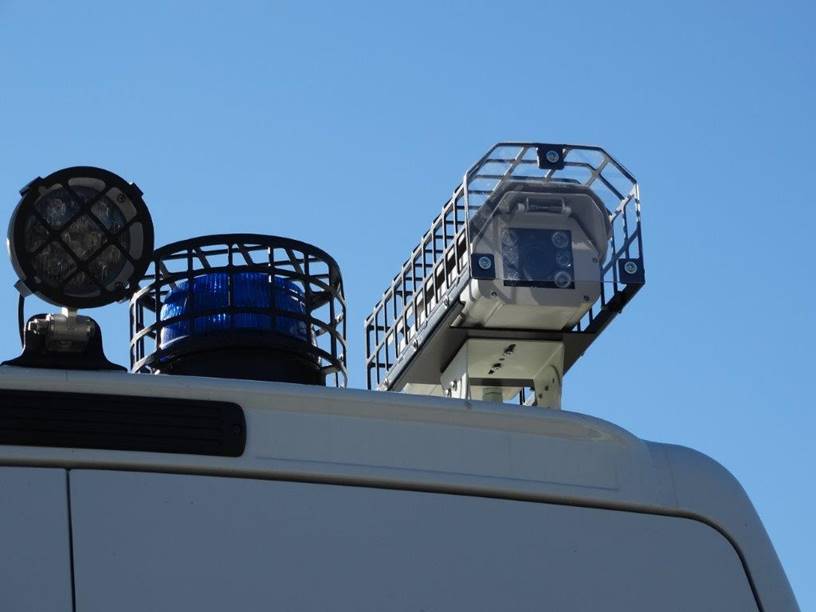

Sysvideo HD-SDI mobile DVR and cameras been installed in Jordan Polic Car, it use 4 channel 1080P SDI high defintion DVR(digital recorder video) and SDI 1080P IR bullet cameras. Sysvideo SDI mobile DVR can support 4 channels 1080P display and recording, playback, it also support GPS, WiFi, 3G/4G, 2.5" mobile hard disk. SDI is real time non-compressed high definition video format, it can get no-delay perferct video without distortion. It is suitable for high-end suiveillance system, like police car and other law enforcement vehicles.
This is solution device list:
| Item | Model | Description | Quantity (set) | |
| 1 | SDM104-SDI | 4ch 1080P SDI mobile DVR, support 4ch 1080P 25/30fps real time recording & monitor , 4ch audio input. 1x 2.5" SATA hardisk drive, 4ch alarm input/1ch output, DC 8-36V power, 1xRS232,1xRS485, twe-way audio talking. USB, VGA, A/V output. working envirement: -20℃ ~ +85℃ ≤80%. GPS, WiFi, 3G/4G module. | 20 | |
| 2 | SATA HDD Reader | Read the video file from harddisk on computer, USB2.0 | 2 | |
| 3 | SC9620M-S20-SDI | 2 Megapixel 1080P 20x Zoom Vehicle Outdoor IR PTZ SDI Camera, IR distance:120m. IP66. Sony zoom camera module. | 20 | |
| 4 | SCS5820B | Mobile,1080P Outdoor IR Bullet HD SDI Camera, 30m IR, 2.8 – 12mm lens | 20 | |
| 5 | SCS5920 | Mobile,1080P Indoor IR Dome HD SDI Camera, 30m IR, 3.6mm lens. | 40 | |
| 6 | Adler AJP03 | RS485 up 255 front end , Pelco-D,Pelco-P, 3D control Joystick | 20 | |
| 7 | Accessories | External Microphone | 20 | |
| 8 | 14m coaxial video cable, power cable & control cable for the Adler PT108-20X | 20 | ||
| 9 | 3m video & power cable and audio cable for Adler VD20RS + Microphone | 20 | ||
| 10 | 3m video & power cable for the Adler VH20RS-Mz | 20 | ||
| 11 | 7m video and power cable for the second bullet | 20 | ||
| 12 | 5m VGA(DVR to monitor) | 20 | ||
